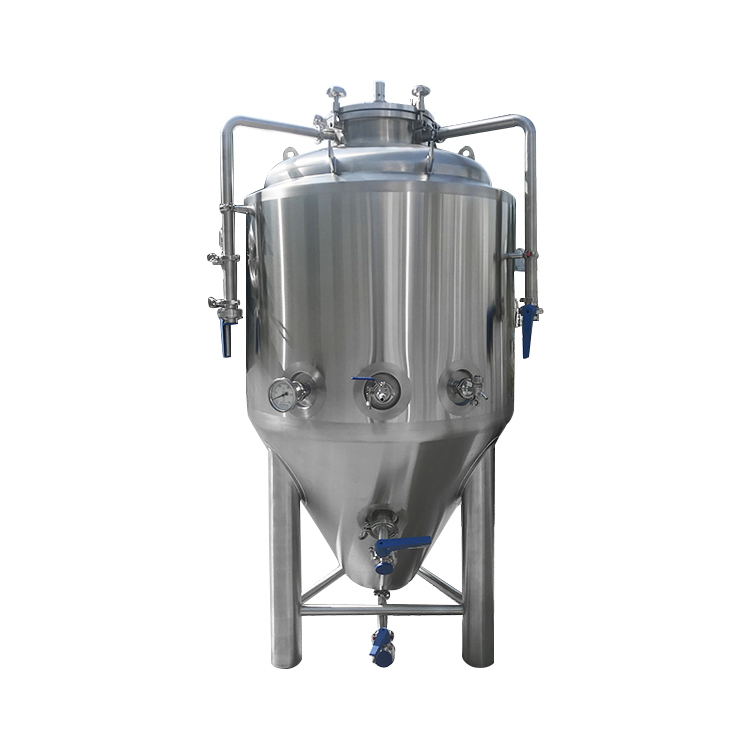

Beer Fermenting System For Craft 300L 500L 1000L Beer Fermentation Tank Beer Brewing Kettle

Main specification: 1. Stainless steel 304, side man way or top manway; 2. PU insulation, insulation thickness: 80-100mm; 3. Inside wall thickness: 3mm, Jacket: 1.5mm, pressure test. outer shell thickness: 2mm; 4. Capacity=capacity+20% allowance 5. Relief valve, pressure regulating valve, sample valve, butterfly valves, CO2 blowoff pipe; 6. PT100 temperature sensor, with temperature controller; 7. 2 sections dimple plate cooling jacket( on body and on cone); 8. Complete with associated valves and fittings;

Product Details :

Technical drawing for 1000L /10HL conical fermenter
Effective capacity	1000L	Thickness	80mm
Total capacity	1300L	Interior thickness	3mm
Boundary dimension	φ1210×H2550	Exterior thickness	2mm
Material	SUS304, brushed outer shell	Manhole	Side/Top manhole
Insulation	polyurethane

* Dimple plate cooling jacket on tank body and conical bottom

* Dished head and taper angle 60°

* Temperature sensor TP100

* Inner tank mechanical polishing and out plate surface protection ribbon polished on welds

* 1pcs x Hops adding port

* 1pcs x breathing valve

* 1pcs x mechanical pressure regulation valve

* 1pcs x sample valve

* 1pcs x racking arm

* 1pcs x pressure gauge

* 1pcs x CIP spray device

* 1pcs x drain outlet bottom

* 4 heavy duty legs with leveling pad

* Working pressure: 1bar

Note:1. 1Hectolitre(HL)=100Liter; 1Barrel(BBL)=117Liter
2. Water supply: water supply, for mashing, cooling, cleaning
3. Electricity supply: 3-phase electricity
4. Voltage/frequency adjust to your local power supply
5. Material: malted barley or wheat, hops, water

Fermentation Tank	Volume in US Gallon	Diameter	Height
100L Fermentation Tank	26US Gallon	620mm	1600mm
200L Fermentation Tank	53US Gallon	820mm	1800mm
300L Fermentation Tank	79US Gallon	960mm	1900mm
400L Fermentation Tank	106US Gallon	960mm	2100mm
500L Fermentation Tank	132US Gallon	1010mm	2100mm
600L Fermentation Tank	159US Gallon	1060mm	2150mm
800L Fermentation Tank	211US Gallon	1060mm	2550mm
1000L Fermentation Tank	264US Gallon	1210mm	2550mm
1200L Fermentation Tank	317US Gallon	1360mm	2550mm
1500L Fermentation Tank	396US Gallon	1560mm	2620mm
2000L Fermentation Tank	528US Gallon	1560mm	3100mm
2500L Fermentation Tank	660US Gallon	1760mm	1760mm
3000L Fermentation Tank	793US Gallon	1760mm	3500mm
3500L Fermentation Tank	925US Gallon	1760mm	3750mm
4000L Fermentation Tank	1057US Gallon	1760mm	4050mm
5000L Fermentation Tank	1321US Gallon	1760mm	4540mm
6000L Fermentation Tank	1585US Gallon	1960mm	4700mm
100HL Fermentation Tank	1849US Gallon	1960mm	5200mm
