1000L 2000L Stainless Steel Beer Fermentation Equipment Beer
Brewing Brewhouse Turnkey Project For Brewery System
The beer brewhouse or microbrewery has several different styles in
order to meet each brewery's or brew master's need, general we can
supply below options:
Brewhouse in 2-vessel,3-vessel,4-vessel, made by SUS304 and copper,
heated by electric/steam/gas, capacity from
50L-5,000L per batch.
Beer fermenter(FV) and bright tank, customized dimension, with or
without hop top and carb stone, double or single wall.
Malt milling system,mill malt and conveyor the powder to mash tun.
Chilling system to cool down the temperature of heat exchanger and
beer tanks.
CIP(Clean-in-Position) system to wash all tanks and pipelines.
Bottling system, bottled in cans/kegs/glass bottles.
Controlling system,with Simens PLC smart system to control
temperature, agitator and pump.
Main Configuration/Details (For example 7BBL )
| Main brewing system | Components | Main specification |

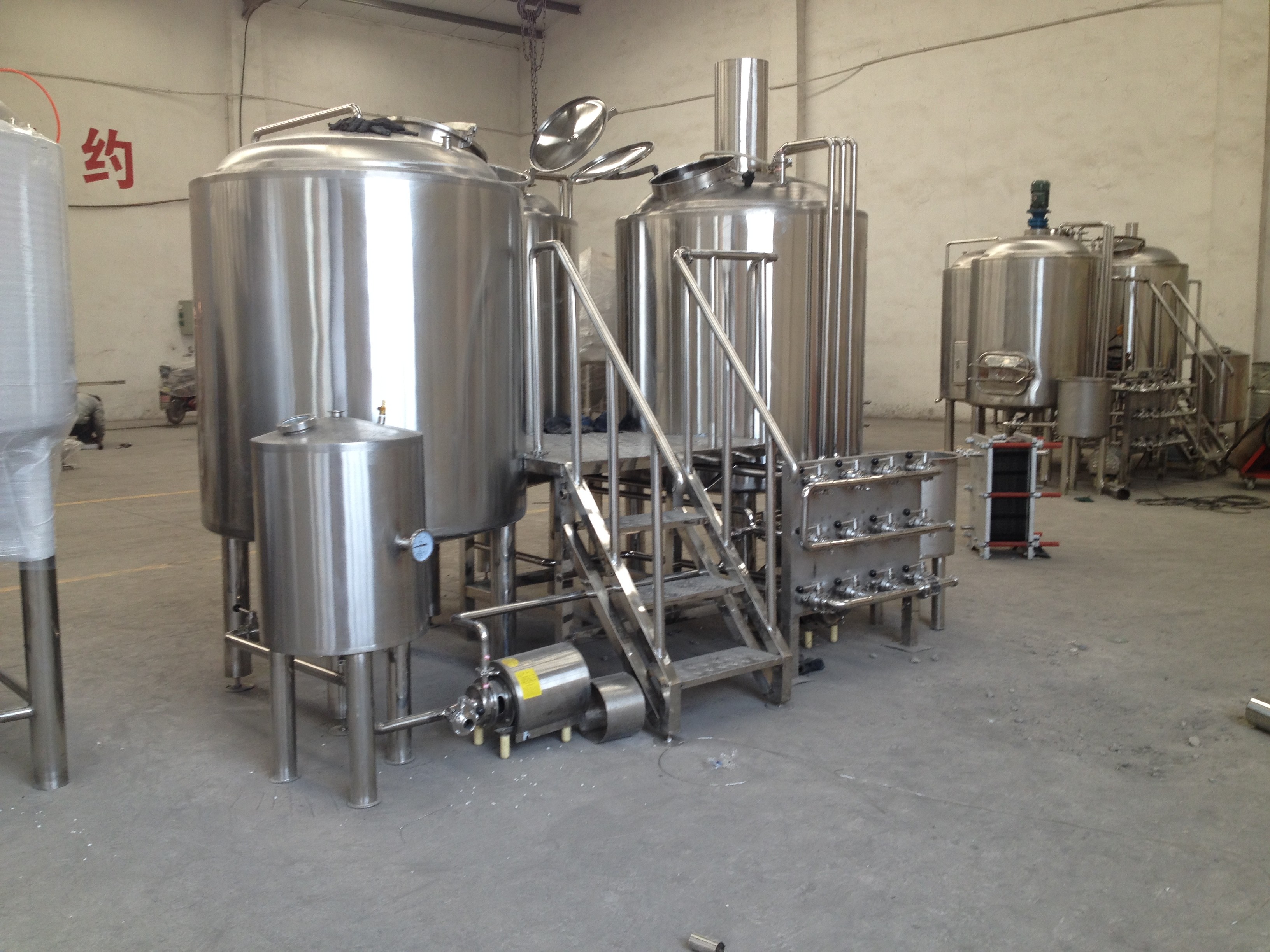

| Brewhouse unit | Mash/lauter/Whirlpool tun | 7BBL
25% head space,
Steam heating with insulation
False bottom,
Rake&motor,
Spent grain outlet |
| Kettle tun | 7BBL
30% head space,
Steam heating with insulation
Steam condenser,
Wort outlet and trub outlet |
| Wort pump | 3T/hr, Sanitary |
| Hot liquor pump | 3T/hr, Sanitary |
| Plate heat exchange | Connected with wort aeration device
Disassemble |
| Work platform | Disassemble,
Adjustable |
| OPTIONAL | Wort grant
Hopback
Hopper
Pneumatic valve
Sterile air compressor |
| Fermentation unit | Fermentation tank | 7BBL/14BBL
25% head space,
CO2 relief valve
Coolant inlet and outlet
Sample valve
Side manway
Top, Dry Hopping Port
CIP connections
Wort inlet and yeast outlet
Racking arm
Temperature and pressure gauges |
| Maturation/Storage (OPTIONL) | Bright beer tank | 7BBL/14BBL
20% head space,
Jacketed and insulated
Dished head&bottom
Pressure valve, relief valve
Site Glass level
Carbonation stone assembly
Sample valve
Side manway
Jacketed and single wall tanks |
| Glycol cooling system | Glycol cooling tank | Thermowell
Top manway
CIP arm and spray ball 360 degree of coverage
Thermowell |
| Cold liquor tank (OPTIONAL) | Top manway
CIP arm and spray ball 360 degree of coverage
Visual level sight glass
Cooling jackets |
| Chiller | Second generation
Freon R410A, R404A |
| Glycol water pump and piping | |
Controlling unit | Brewhouse control panel | Temperature monitoring& controlling
Pump on/off control
VFD control |
| Cellar control panel | Temperature monitoring& controlling
More controllers reversing for expansion available |
| Cleaning unit | Alkali tank | 100L Electric heating |
| Sterile tank | 100L |
| Pump and piping | |
Optional items: Beer filter, Keg filling system, Bottle filling
system
Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
Customized requirement acceptable
Contact us immediately to get latest specification and price of 2Vessels Brewhouse System !Thank you !
