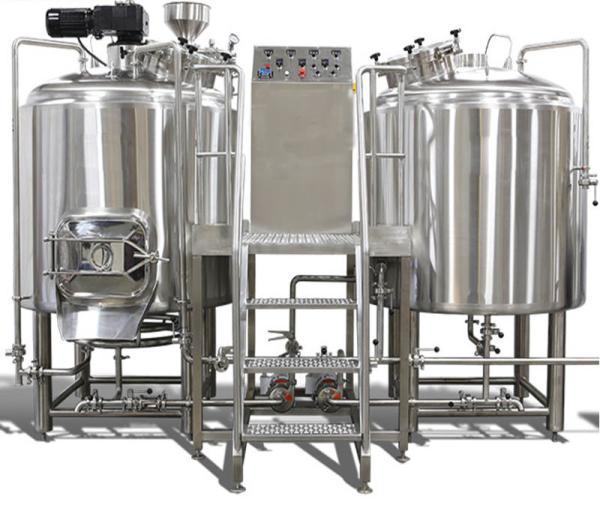

8 bbl 2Vessel Brewhouse Syatem For Brewpub Brewery Equipment With
Mirro Polish Interior
Introduction
Microbrewery or minibrewery is typically applied to breweries that
are much smaller than large-scale corporate breweries and are
independently owned. Such breweries are generally characterized by
their emphasis on flavor and brewing technique. We offer a
Microbrewery (mini brewery) with the productivity of 1000L (10 hl)
to 5000L (50hl) per brew. The service includes: complete set of
microbrewery equipment, installation turn key, recipes and
technology of branded beers, staff training and more. Microbrewery
comes complete "turnkey" The performance of your Microbrewery
(Brewery and mini brewery), if necessary, can be increased in the
future.
Specifications
| Output/Brew | 8 bbl |
| Brew/Week | 2~6 |
| Output/Week | 14~42 bbl |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Electric/Steam |
| Area Request | >45M2 |
| Brewmaster | 1 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
Configuration
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger to directly lift the milled grain to mash
tun
2. 8 bbl Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various
combination
Hot water tank and cold water tank for optional in special
combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel are popular because of easy maintenance and clean,
copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
3. 8 bbl or 12 bbl Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in
microbreweries
Tanks quantity is exactly calculated by fermentation cycle for
various beers
All manhole, valves, pressure gauges, fittings etc are included
4. Beer Filter Unit
Craft beer is no need filtration which will keg filling for quickly
consumption
Plate-Frame or Candle type DE (diatomite earth) filter is used for
clarify the beer
5. 8 bbl or 12 bbl Bright Beer Tank Unit
Standard stainless steel bright tanks for beer maturation,
conditioning, service, carbonation
Single size or double size as fermenter is common used in
restaurant or bar
Tanks quantity is exactly calculated for various beers and the
function
All manhole, valves, stone, gauges, fittings etc are included
6. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol
liquid holding and mixing
Efficiency chillers or refrigerators with fryon to supply cooling
energy
Sanitary centrifugal pump for glycol water recycle among tanks and
heat exchanger
All pipes, fitting, insulation materials are included
7. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling
for brewhouse
Electrical controlling cabinet with temperature, on-off controlling
for cooling parts
Temperature controller, thermocouple, solenoid valves etc are
included
PLC with touch screen panel for special request
8. Beer Dispense
Keg filling and rinsing machine
Semiauto bottling machine with rinsing, filling, capping, labeling
etc
Flash pasteurizer or tunnel pasteurizer is available
9. Other Facilities
Portable or fixed CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery lab instruments for beer quality test]
Quality control
● All stainless steel coils are purchased from high-quality steel
supplier.All chemical composition and mechanics performances are
controlled strictly.
● All welders are qualified.
● ISO9001 system assures all procedures done correctly.
● All tanks are inspected completely before delivery, including
hydrostatic test, dye penetration test,etc.
Convenient logistics
● Door to door delivery saves time&energy for clients.
● Optimized container proposals save client’s shipping freight.
● Safe seaworthy package and loading guarantee non-destroyed parts
during shipping is promised.
After-sales Service Provided:
2 yearS of tank and 6 months of accessories guarantee, lifelong
maintenance at cost charge
7x24 hours per week email&phone available
Maintenance, return & exchanges services
Package:
Each tank is wrapped with blanket and anti-water film, lay down on
steel saddle in the container,and is braced by steel wire.The
packaging looks very beautiful and won’t be damaged during shipment
