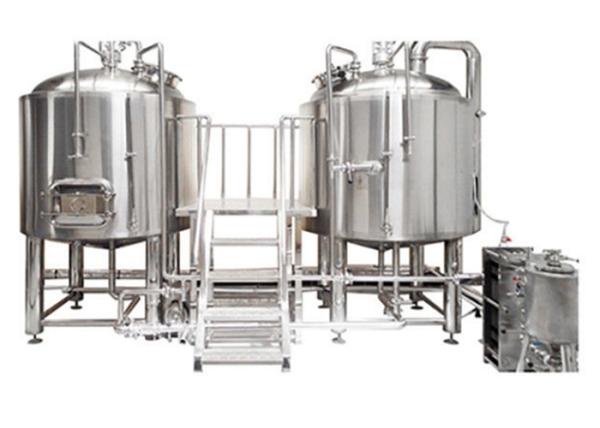

    Customized Stainless Steel Small Brewery Equipment Beer Brewing Making Tank

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : Ce ISO TUV
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    Customized Stainless Steel Small Brewery Equipment Beer Brewing Making Tank


    Customized Stainless Steel Small Brewery Equipment Beer Brewing Making Tank


    Hot sale stainless steel mash tun fermenter brew kettle home beer brewing equipment 100L 200L 300L 500L 1000L beer equipment
    100L 200L 300L 500L beer equipment, widely used in restaurant and bar.super design and best service.
    This beer mash equipment is populared in restaurant and bar more and more.We are a biggest and professional beer equipment manufacture in China, we also manufacture all types and sizes of fermenting and storage tanks. Our beer equipment can be designed according to the specific wishes of our customers.



    Milling System
    Mill Machine
    1. Two Rollers;
    2. The power is 1.5 Kw
    3. Speed of Fast Roller(r/m):770.
    Beer House System
    Mush Tun
    1. Be made of stainless steel 304; Brushed outer shell;
    2. Working volume :100L - 5000L;
    3. Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm
    4. Top mounted manway with full glass;
    Lauter Tun
    1. Be made of stainless steel 304. Brushed outer shell.
    2. Working volume: 100L - 5000L ;
    3. Thickness of insulating layer: 80mm, Thickness of inner body stainless steel: 3mm, outer shell is 2mm
    4. With liquid level meter;
    5. Rake plow/ Grain out door, Milled sieve plate; Grain washing round pipe; CIP rotary spray device
    6. Top mounted manway with full glass, manway handles material is plastic; Top decorative funnel; thermo well;
    Brew kettle /Whirlpool Tank
    1. Be made of stainless steel 304; Brushed outer shell;
    2. Working volume:100L-5000 L;
    3. Steam jacket
    4. Hickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm
    5. Top mounted manway with full glass;
    6. With indoor or outdoor venting devices
    7. CIP rotary spray device; safety combination
    8. Bimetal thermometer and temperature probe
    9. Tangential whirlpool line at the side
    10.Outer and Inner plate protection , and ribbon polished on all welds
    Fermentation System
    Fermenter
    1. To be made of stainless steel 304. Brushed outer shell.
    2. Working volume: 100L- 5000 L
    3. Thickness of insulating layer: 100mm.Inner body thickness: 3mm. Outer thickness 2mm;
    4. Design pressure 30psi, use pressure 15psi
    5. Side man way; Ladder and lifting ear. Hop add port
    6. Tank top is domed, with 60°cone bottom
    7. Dimple plate cooling jacket. Dual glycol zoned jacket;
    8. PSI pressure gauge; Kieselmann brand mechanical pressure regulator valve; SUS solenoid water valve, Tri clamp breath valve and sample valve; With liquid level meter
    9. CIP rotary spray ball. Beer outlet and drain outlet with butterfly valves ;
    10. Interior and outer tank weld place s do polish
    Brite Beer tank
    1. To be made of stainless steel 304. Brushed outer shell
    2. Working volume: 2000 L
    3. Thickness of insulating layer: 100mm, inner body thickness: 3mm
    4. Design pressure 45psi, use pressure 30psi
    5. Tank top and bottom is domed
    6. Dimple plate cooling jacket. Dual glycol zoned jacket.
    7. Side man way; Ladder and lifting ear.
    8. PSI pressure gauge; Kieselmann brand mechanical pressure regulator valve; SUS solenoid water valve, Tri clamp breath valve and sample valve; With liquid level meter
