    Dual Jacketed Electrical Heating Blending Mixing Tank Stainless Steel 300L

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

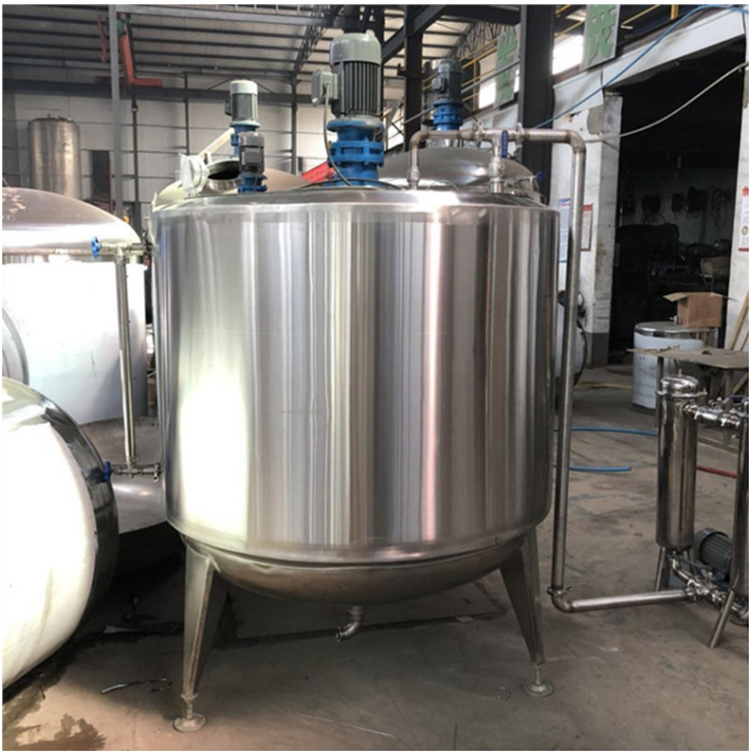

    Dual Jacketed Electrical Heating Blending Mixing Tank Stainless Steel 300L


    Dual Jacketed Stainless Steel 300L electrical heating blending mixing tank


    Product Name: mixing tank
    Brand: YDL
    Material :304(L) 316(L)
    Finish:Mirror or Matt Polish; Ra<0.4um
    Certification: CE ISO9001


    Used as mixing tank, blending tank etc.
    Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

    Structure characteristics:
    Made of single-layer stainless steel structure.
    Materials are all sanitary stainless steel.
    Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

    Configuration of tank:
    Quick open manhole.
    Various types of CIP cleaners.
    Fly and insect resistant sanitary breathing cover.
    Adjustable triangular bracket.
    Dismountable materials input pipe assembly
    Thermometer (According to customer requirements ).
    Ladder (According to customer requirements).
    Paddle blender.
    Liquid level meter and lever controller (According to customer requirements).


    MixerPaddleSuitable for low viscosity liquid.such as milk,beverage,beer etc.
    AnchoredSuitable for stirring medium viscosity material
    FrameSuitable for stirring porridge-type material
    ScrapePetrochemicals, pesticides, fine chemicals, high polymer, pharmaceutical, food, cosmetics, dyes, paints, water treatment and other industries.
    EmusifierAn emulsion is a mixture of two or more liquids that are normally immiscible (unmixable or unblendable). Emulsions are part of a more general class of two-phase systems of matter called colloids.Food (dairy) products, beverage, pharmaceutical, chemical and other industries, the material for mixing, emulsifying effect
    Scattered diskThe jagged coatings up and down ,to finish a high-speed shear, impact, crushing, dispersion to paints, dry, solid - liquid materials etc, in order to achieve rapid mixing, dissolving, dispersing, refined state.
    Magnetic agitationA magnetic stirrer or magnetic mixer is a laboratory device that employs a rotating magnetic field to cause a stir bar (also called "flea") immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid.Pharmaceutical, fine chemicals, cosmetics, biotechnology and other industries

    VolumeBody Diameter X Body HeightTotal HeightInsulate PU FoamInlet&Outlet
    (L)(mm*mm)(mm)(mm)(mm)
    500840*100023006038
    600920*100024006038
    700990*100024006038
    800950*122025506038
    9001010*122027006038
    10001060*122027006051
    20001340*150027506051
    30001410*200035006051
    50001910*200038506051
    100002300*244045006051
    150002530*300052006051
    200002640*366058006051
