1. Name of commodity
Stainless Steel Mini Beer or Wine Making Conical Beer Fermenter
2. Application
Restaurant, hotel, brewpub, bar, university laboratory,
microbrewery
3. Main machine
| Description of goods | Mash kettle boiler & lauter/whirlpool tun |
| Capacity | 1000L |
| Main machine | A mixing device, A motor(0.75KW)with reducer |
| Raw material | Stainless steel& Red copper(Inner polishing up to 0.4 Micron) |
| Thickness | liner: 3mm; external biliary:2.5mm |
| Insulation material | Thickness of insulation material polyurethane: δ100mm |
| Volume | Gross Volume1250L,EfficiencyVolume: 1000L |
| Cleaning system | With CIP wash rotating ball |
| Thermometer | Digital Temperature Thermometer |
| Heating method | Steam heating |

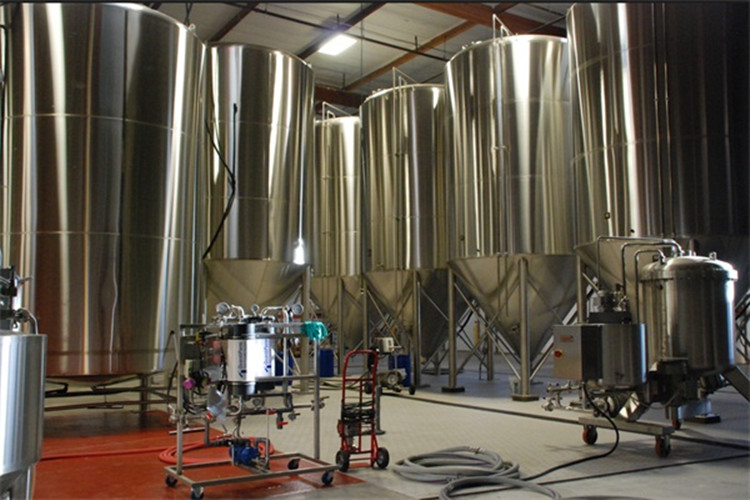

YDL can supply wine tank ,storage tank, beer tank,wine
tank,fermenter,water tank,juice tank,and pressure vessel
1)Tank (Pressure Vessel) volume: 0.5-5000 cubic meters
2)Dimension: Diameter and height according to the requirements
3)Material: Stainless Steel (304 or 316L)
4)Tank shell thickness: 2mm or more (according to the design or
customer required)
5)Pressure (MPa): Atmospheric pressure-Middle pressure (According
to the Chinese
Design standard)
6)Function: Storage or fermentation tank
7)Design temperature C-degree: -5-80
8)Medium: Various drinks including wine, beer, fruit wine, fruit
juice and so on.
9)Tank surface: The original surface of the stainless steel plate
(or polishing if required)
10)Operation plate form: We can design the plate form if required.
11)Mixing: Top side or bottom mixing.
12)General accessories(If required): Manhole, CIP, respirator,
sight glass, mixing
13)Manufacture standard: Chinese Pressure Vessel Design and Making
Standard
14)Guarantees inner quality and safety, good looking appearance and
function by introducing international advanced large-sized
equipment of pulse plasma arcwelder and auto polishing machines and
cooperating with international famous finished
How to choose
| Bright Tank Series | Volume by US Gallon | Conical Degree | Diameter | Height |
| 2HL Bright Tank | 53US Gallon | 60 (70,90 availabe) | 820mm | 1400mm |
| 3HL Bright Tank | 79US Gallon | 60 (70,90 availabe) | 860mm | 1650mm |
| 6HL Bright Tank | 106US Gallon | 60 (70,90 availabe) | 1060mm | 1900mm |
| 8HL Bright Tank | 132US Gallon | 60 (70,90 availabe) | 1160mm | 2050mm |
| 10HL Bright Tank | 159US Gallon | 60 (70,90 availabe) | 1260mm | 2100mm |
| 12HL Bright Tank | 211US Gallon | 60 (70,90 availabe) | 1360mm | 2100mm |
| 15HL Bright Tank | 264US Gallon | 60 (70,90 availabe) | 1360mm | 2400mm |
| 20H Bright Tank | 317US Gallon | 60 (70,90 availabe) | 1560mm | 2350mm |
| 25HL Bright Tank | 396US Gallon | 60 (70,90 availabe) | 1560mm | 2800mm |
| 30HL Bright Tank | 528US Gallon | 60 (70,90 availabe) | 1760mm | 2700mm |
| 35HL Bright Tank | 660US Gallon | 60 (70,90 availabe) | 1760mm | 3050mm |
| 40HL Bright Tank | 793US Gallon | 60 (70,90 availabe) | 1760mm | 3350mm |
| 50HL Bright Tank | 925US Gallon | 60 (70,90 availabe) | 1760mm | 3900mm |
| 60HL Bright Tank | 1057US Gallon | 60 (70,90 availabe) | 1960mm | 3860mm |
| 70HL Bright Tank | 1321US Gallon | 60 (70,90 availabe) | 1960 mm | 4260mm |
| 100HL Bright Tank | 1585US Gallon | 60 (70,90 availabe) | 2250mm | 4920mm |
| 150HL Bright Tank | 1849US Gallon | 60 (70,90 availabe) | 2250mm | 6750mm |
