Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine

Hubei Yideli Light Industry Technology Co., Ltd.
Contact Now
    Buy cheap Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine from wholesalers

    Buy cheap Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine from wholesalers
    • Buy cheap Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine from wholesalers
    • Buy cheap Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine from wholesalers
    • Buy cheap Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine from wholesalers

    Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine


    Stainless Steel Cone Bottom Conical Beer Fermenter Beer Making Machine


    1. Features

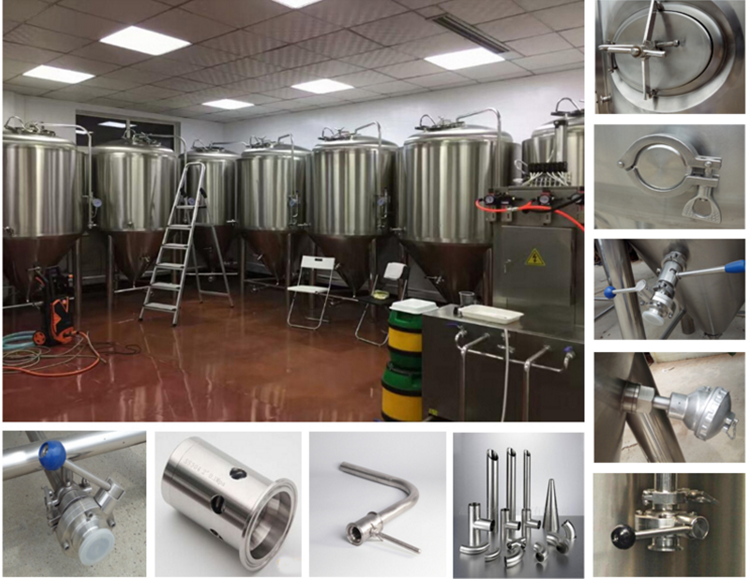

    Our fermenter is available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a Dish top, Cylinder Body & 60 /70° Cone Bottom. Certified 304 stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate Jacket for Glycol Cooling & High Efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.


    Brewhouse Unit
    1. Mash tun, Lauter
    Tun, Boiling Kettle, Whirlpool tun in various combination
    2. Hot water tank and cold water tank for optional in special combinations
    3. Infusion or decoction brewing methods are designed exactly
    4. Stainless steel or copper cladding
    is popular
    5. Two stages or single stage heat exchanger for wort cooling
    6. Completely stainless steel integrated work platform
    7. Sanitary and efficiency wort pump
    8. All pipings and fittings


    Fermentation Unit
    1. Standard stainless steel conical cylindrical fermentation tanks
    2. Single size as brewhouse is
    commonly used in the restaurant
    3. Tanks quantity is exactly calculated by fermentation cycle for various beers
    4. All manhole, valves, pressure gauges, fittings etc are included


    Bright Tank Unit
    1.Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
    2. Single size as fermenter is
    commonly used in restaurant or bar
    3. Tanks quantity is exactly calculated for various beers and the function
    4. All manhole, valves, stone, gauges, fittings etc are included


    Cooling Unit
    1.Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
    2. Efficiency chillers or refrigerators with
    front supply cooling energy
    3. Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
    4. All pipes, fitting, insulation materials are included


    Controlling Unit
    1. Electrical controlling cabinet with temperature, on-off controlling for
    the brewhouse
    2. Electrical controlling cabinet with temperature, on-off controlling for cooling parts
    3.
    The temperature controller, thermocouple, solenoid valves etc are included
    4. PLC with touch screen panel for special request


    Beer brewing equipment is usually independently owned. Such breweries are

    generally characterized by their emphasis on flavor and brewing technique. We supply

    microbreweries from 500L to 3500L per brew. Our service includes complete

    microbrewery equipment, installation, recipes of branded beers, staff training etc.

    If necessary, it can be expanded in the future.


    Technical Parameters


    Capacity

    (BBL)

    Cylinder

    (OD×H)

    (mm)

    Total Height

    (OAH)

    Inlet&OutletDia.

    (mm)

    PU Insulation

    (mm)

    Manway Size

    (mm)

    Interior Thickness

    (mm)

    7BBLΦ1000×12502530Φ3850440×3203
    10BBLΦ1150×12502670Φ3850440×3203
    15BBLΦ1250×16803250Φ3850550×4303
    20BBLΦ1400×17003400Φ3850550×4303
    30BBLΦ1600×18503740Φ5150550×4303
    40BBLΦ1750×20504040Φ5150550×4303
    50BBLΦ1800×22004350Φ5150550×4303
    80BBLΦ1900×24004600Φ5150550×4303
    100BBLΦ2100×29005300Φ5150550×4303

    Goods3mm for Interior Shell/2mm for Exterior Shell 3 Vessel Brewhouse for Industrial Brewing
    Capacity2500L
    Heating methodSteam/Direct fire (jet burner/gas burner)
    Structure4-vessel: Mash+lauter tank+Kettle+whirlpool tank
    Combi Vessel:Lauter(upper)/whirlpool (down)+Kettle Hot liquor tank at customer's request
    UsageBrewery pub/restaurant/hotel
    ExteriorCopper, thickness 2.0mm
    InteriorStainless steel, thickness 3.0mm
    InsulationRockwool, thickness 80mm
    CleaningCIP arm, 360° spray ball
    TemperatureHigh accuracy temperature sensor, PT100
    CoolingThe high efficient plate heat exchanger
    ControlSemi-auto/auto control cabinet
    Wort ventilateSanitary wort aeration device with sight glass and carbon stone
    .Milling V-wire false bottom
    .With lauter rakes, VFD control
    .Side spent grain manway
    .Stainless steel top manway
    .With tangent whirlpool inlet
    .Efficient centrifugal wort pump/hot liquor pump
    .With hops filter for trub collection
    .Stainless steel plate heat exchanger for wort cooling
    .Oxigenate with carbon stone
    .Sanitary stainless steel butterfly valves and pipeline connection
    .Stainless steel heavy duty supporting legs
    .Argon gas protection welding, well polishing
    .Electric heated: heating elements
    Steam heated: steam jacket
    Direct fire: firebox
    Optional:
    -Agitator in kettle/whirlpool
    -Hydrator
    -Wort collector
    -Grant
    -Balance tank (sight glass type)
    -Steam generator, electric/gas/diesel
