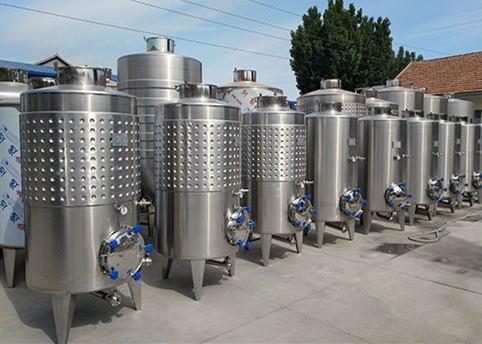

Mirror Polish Steel Dimple Jacket Wine Liquid Fermentation Tank
Features
1). Easy to install and operate;
2). Uniform Heating; Easy control of heating temperature;
3). Large heating area;
4). Corrosion & abrasion resistance; More durable;
5). The equipment is equipped with air-breathing holes, CIP cleaning
nozzles, manholes, and other devices.
6). The tank body and the top and bottom fillers (or cones) are
processed by spinning R angle.
7). The tanks are equipped with sandwiches, the insulation layer,
heating, cooling, and heat preservation.
8). The fully enclosed design ensures that the materials are mixed and
fermented in a pollution-free state at all times.
9). The inner wall of the tank is polished by the mirror without any
sanitary dead angle.
Fermentation tank is a kind of equipment for mechanical stirring
and fermentation of materials. The equipment adopts internal
circulation mode, disperses and breaks bubbles with the agitator.
It has high dissolved oxygen rate and good mixing effect. The tank
body adopts SUS304 or 316L imported stainless steel, and the tank
is equipped with an automatic spray cleaning machine head to ensure
that the production process meets GMP requirements.
Classification of fermentation tanks:
According to the equipment of fermentation tanks, fermentation
tanks are divided into mechanical agitation and ventilation
fermentation tanks and non-mechanical agitation and ventilation
fermentation tanks.
According to the needs of microorganism growth and metabolism, it
can be divided into aerobic fermentation tank and anaerobic
fermentation irrigation
| Model Capacity | YDL-1000 | YDL-2000 | YDL-3000 | YDL-4000 | YDL-5000 |
| Capacity | 1000L/time | 2000L/time | 3000L/time | 4000L/time | 5000L/time |
| Area Request | 100m2 | 150m2 | 200m2 | 300m2 | 400m2 |
| Installed Power | 15KW | 20KW | 25KW | 35KW | 40KW |
| Steam Request | 0.15Ton/Hr | 0.2Ton/Hr | 0.2Ton/Hr | 0.3Ton/Hr | 0.3Ton/Hr |
| Water Consumption | 2m3/day | 3m3/day | 5m3/day | 6m3/day | 8m3/day |
| Liner size (diameter x height) mm | 900×1500 | 1100×1600 | 1200×1800 | 1200×2600 | 1400×3000 |
| Agitation speed(r/min) | 300 | 260 | 240 | 220 | 200 |
| It is used for Wine fermentation & brewing. It applies in the brewing industry. |
| Stainless Steel 304 or 316L |
| 1). It is made of double jackets with dimple jacket and insulation
layer filled with PU which is imported from Japan. |
2). Dish top, conical bottom for good fermenting, improving the
quality of beer as well as breeding yeast, cylinder body. |
3). As to polish, interior layer and dish top will adopt 3A mirror polish while exterior layer and conical bottom adopt 2B satin polish. |
4). As to transition of interior, we will adopt arc to make sure that there is no dead corner of
sanitation. |
5). 10-30% headspace, 60 degree cone, rotating racking arm is designed according to your demands |
6). All clamps valve and fittings except for cold water inlet and
outlet which is Tri-clamp. |
7). As to the thickness, we can make it according to your
requirement. |
8).etc |
| 1.Configuration details can be designed as your requirements |
2.Competitive price and also higher quality tank. |
