Various stainless steel 304/316L water storage tank /heating
jacketed kettle /mixing tank
Product Details :Stainless Steel Storage Tank
1. SUS304 or SUS316L;
2. This storage tank accordance GMP standard ;
3. 10 years experience ;
4. Different volume for choose .

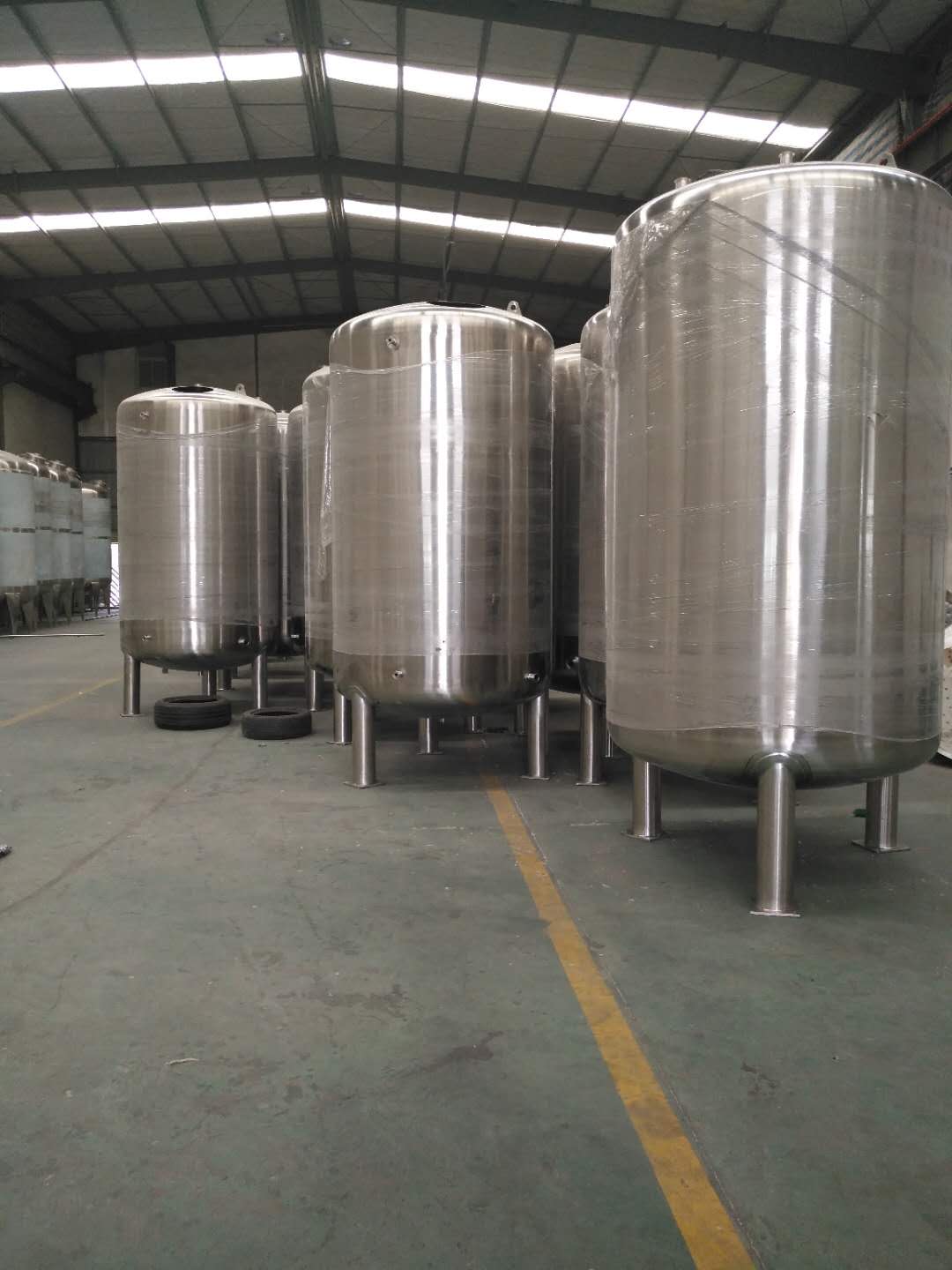

Stainless steel tank (storage tank ) s usually used for storage
water, liquid , milk , temporary storage , material storage , etc.
Suitable for such fields as dariry , juice , beverage , medicine
chemical or bio-engineering Project, etc.
We can supply single-layer , dual-layer and three-layer stainless
steel tanks with or without agitation to blend product, with a wide
capacity range from 1000L to 30,000L and even larger .
Single -layer tanks are widely applied in the beverage ,food ,dairy
, pharmaceutical , chemical and process industries used as blender
tank , buffer tank and storage tank , which cleanable to sanitary
standards (e.g. FDA, USDA standards).
Technical parameters
Product name:liquid storage tank(stainless steel storage
tank,storage water tank)
1. Made of stainless steel
2. Humanized structure design and easy to operate.
3. polish inside outside
Applicable range:Used as liquid storage tank, liquid composing
tank, temporary storage tank and water storage tank etc.
Ideal in field such as foods, dairy products, fruit juice
beverages, pharmacy, chemical industry and biological engineering
etc.
Structure characteristics:
1 Made of single-layer stainless steel structure.
2 Materials are all sanitary stainless steel.
3 Humanized structure design and easy to operate.
4 Transition area of interior wall on tank adopts arc for
transition to ensure no dead comer of sanitation.
Configuration of tank:
5 Quick open manhole.
6 Various types of CIP cleaners.
7 Fly and insect resistant sanitary breathing cover.
8 Adjustable triangular bracket.
9 Dismountable materials input pipe assembly.
10 Thermometer (According to customer requirements).
11 Ladder (According to customer requirements).
12 Liquid level meter and level controller (According to customer
requirements ).
13 Eddy-proof board.
It can be made according to special requirements of customers .
Technical parameters
| Model | Storage
capacity | Diameter | Simplified height (mm) | Thickness | In/Outlet
diameter |
| SS-0.5T | 0.5m3/h | Φ800 | 1220 | 1.5mm | 1" |
| SS-0.6T | 1Tm3/h | Φ1000 | 1220 | 1.5mm | 1" |
| SS-0.7T | 1.5m3/h | Φ1200 | 1220 | 2.0mm | 1" |
| SS-2T | 2m3/h | Φ1200 | 1500 | 2.0mm | 1" |
| SS-3T | 3m3/h | Φ1400 | 1500 | 2.0mm | 1" |
| SS-4T | 4m3/h | Φ1500 | 2000 | 2.0mm | 1" |
| SS-5T | 5m3/h | Φ1600 | 2000 | 2.0mm | 1" |
| SS-5T | 5m3/h | Φ1600 | 2000 | 3.0mm | 1" |
| SS-6T | 6m3/h | Φ1800 | 2000 | 3.0mm | 1.5" |
| SS-8T | 8m3/h | Φ2000 | 2000 | 3.0mm | 1.5" |
| SS-10T | 10m3/h | Φ2200 | 2000 | 3.0mm | 1.5" |
| SS-15T | 15m3/h | Φ2400 | 2440 | 3.0mm | 1.5" |
| SS-20T | 20m3/h | Φ2600 | 3000 | 3.0mm | 2" |
