    SS304 / 316 Fresh Milk Refrigerated Storage Tank Vertical Cooling Tank For Milk Plant

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    SS304 / 316 Fresh Milk Refrigerated Storage Tank Vertical Cooling Tank For Milk Plant

    Fresh milk refrigerated storage tank vertical cooling tank for milk plant

    Introduction of direct cooling milk tank

    Milk refrigeration tank is the main supporting equipment for mechanized milking in pastures. It is more suitable for manual milking of pastures and milking stations, and milk factories cool and store fresh milk. It is mainly used for cooling and storing fresh milk and other liquid materials. Through the automatic control system, one-step observation and operation can make the chilled raw milk quickly drop to the required temperature ºC and keep the constant temperature. It can prevent bacterial reproduction and keep the raw milk in the state of grade a milk.

    Principle and structure of direct cooling milk tank:

    Milk refrigeration tank is mainly composed of tank body, mixer, scrubber, refrigeration unit and electrical control box. The milk cooling tank is a horizontal elliptical body. Polyurethane rigid foam board is adopted between the inner and outer tanks. The material has the thermal insulation layer with low thermal conductivity, light weight, high strength and low water absorption, and has good heat preservation performance. The product has advanced design and manufacturing technology, reliable performance, cooling, thermal insulation performance and health standards are in line with the advanced level.

    Features of direct cooling milk tank:

    1. The tank wall adopts advanced plate evaporator to directly exchange heat and refrigeration with milk. 2. The refrigeration compressor is imported from France. It is equipped with reliable neutral point protector, which will not burn out the motor due to overload or system failure. 3. All tanks are made of SUS304 or 316 stainless steel with automatic pressure cleaning and manual and automatic mixing devices, 4. The new technology of polyurethane foam is used in the insulation layer, which has good thermal insulation performance.




    Technical parameters

    Model
    Specification
    Compressor
    Motor Power
    M1
    1T
    3P
    1.1kw
    M2
    2T
    5P
    1.1kw
    M3
    3T
    6P
    1.5kw
    M4
    4T
    8P
    1.5kw
    M5
    5T
    10-12P
    2.2kw
    M6
    6T
    12P
    2.2x2kw
    M7
    7T
    16P
    3.0x2kw
    M8
    8T
    16P
    3.0x2kw
    M10
    10T
    16-20P
    4.0x2kw

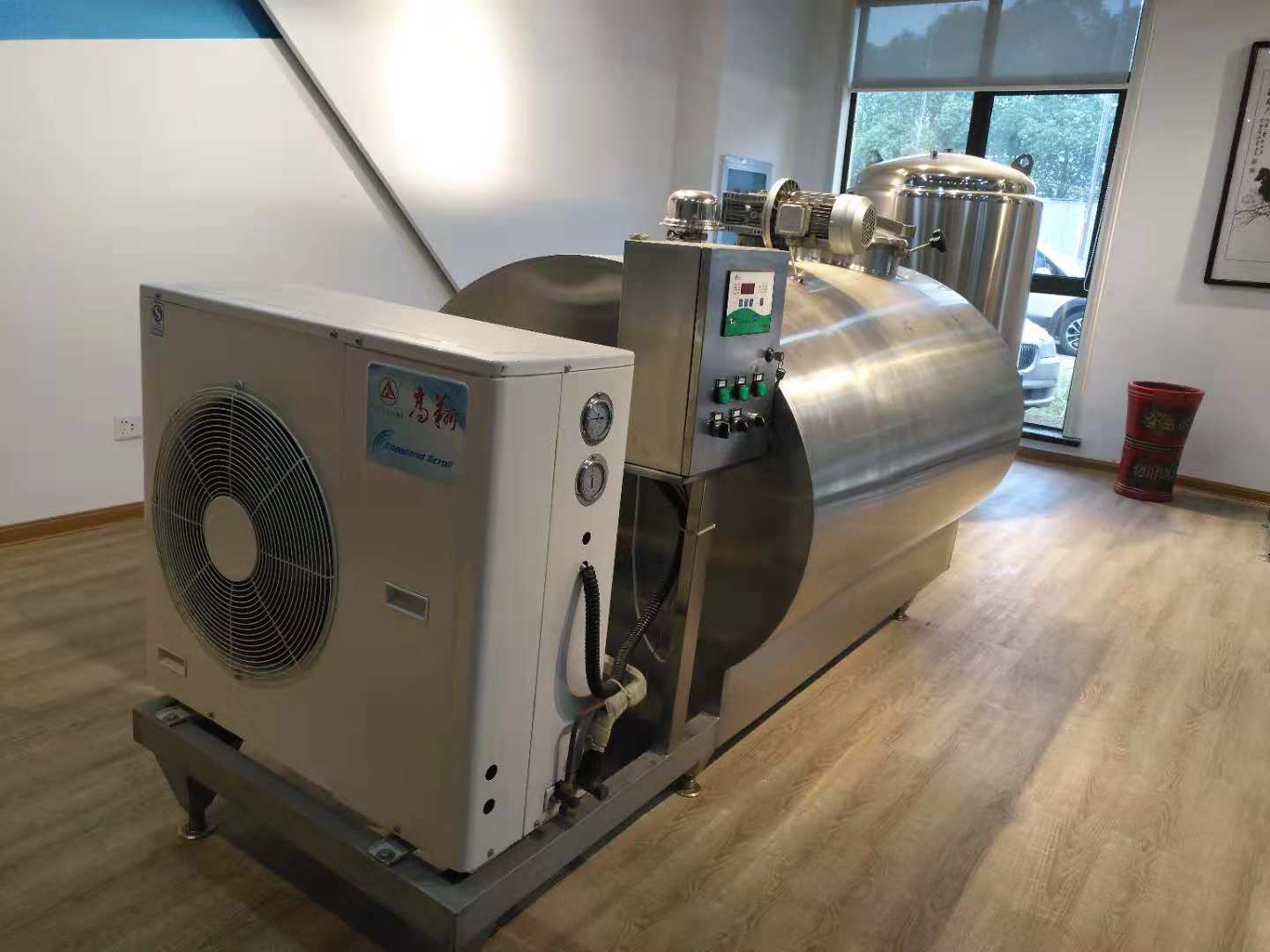

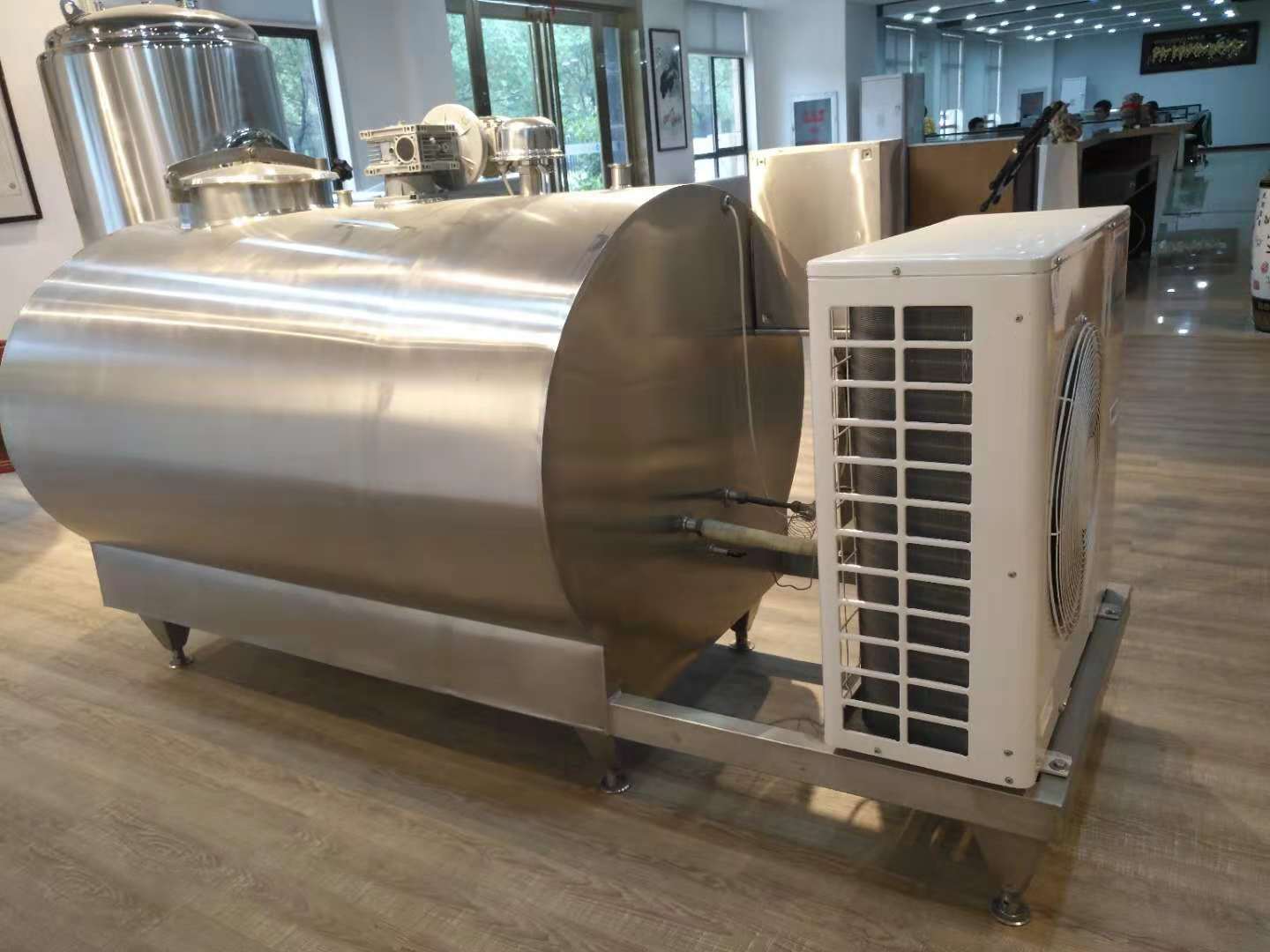

    Product Display
