Brand Name : | YDL |
Model Number : | YDL-TS100 |
Certification : | PED TUV ISO |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 10000sets per month |
Delivery Time : | 30days |
4-20mA Transmitter Temperature For Beer Brew Auxiliary Brewing Equipments
Quick Details
1. Products: Temperature Sensor
2. Size: 4-20mA
3. type: Transmitter
4. Material: Sanitary Stainless Steel SUS304 Or 316L
5. Function: Seal With Press
6. Over 10years strong factory
7. Customized service
Standard temperature thermocouple
Material | Type | Range°C | Tolerance |
Ni/Ch-Ni/Si | K | 800-1200 | ±2.5 or±0.75%t |
Ni/Ch-Cu | E | 600-800 | ±2.5 or ±0.75%t |
Cu | T | 350-400 | ±2.5 or ±0.75%t |
Fe-Cu | J | 600-700 | ±2.5 or ±0.75%t |
Pt | PT100 | 0-600 | ±1 or ±0.75%t |
Cu | CU50 | -50~100 | ±2.5 or ±0.75%t |
Description
Model | YDL-202 RTD Thermal resistance temperature sensor PT100 |
Temperature range | -50 to +400°C |
Output | 4-20mA or RTD PT100 temperature sensor e |
Power supply | 10 ~30VDC resistance thermocouple |
error | 0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility | 316L stainless steel |
Pressure connection | Thread M20, M18*1.5 RTD PT100 temperature sensor |
Protection tube | Stainless steel 6mm and 8mm dia optional |
Insert length (L) | 30mm <L<500mm resistance thermocouple |
Sensing element | RTD PT100 temperature sensor |
Electrical connector | Waterproof junction box |
Product parameter
Application
General industrial gas and liquid temperature measurement
Plastic injection molding machinery;Food processing equipment;Engine and turbine exhaust gas;Semiconductor processing;Heating treating and metals processing;Medical equipment;Aerospace industries;Packaging equipment;Test standards.
Performance features
RTD Thermal resistance temperature sensor PT100 adopts thermocouple
or resistance as the temperature measuring element, RTD Thermal resistance temperature sensor PT100 is normally matched with display, recording and regulating
instrument, to measure the surface temperature (from -50 degree to
400 degree) of liquid, steam, gas and solid during various
production process.
WORKING PRINCIPLE
Thermocouple is composed of temperature sensor and signal
converter, signal converter is installed in the junction box of
temperature sensor, temperature sensor produce resistance or
potential effects made by the temperature affect, via
transformation to create a differential voltage signal. The signal
via the amplifier amplification, then through voltage and current
transformation, output 4-20 mA current signal corresponding to the
range.

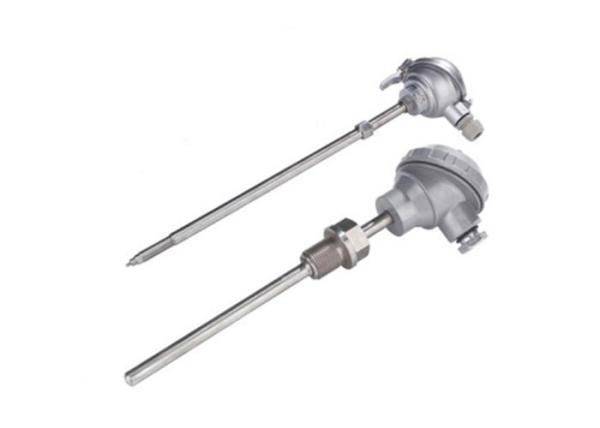

Products Pictures
![]() |
