Stainless Steel 304 Automatic Flexible Screw Feeder Auxiliary
Brewing Equipments
Quick Details
1. Products: Automatic Flexible Screw Feeder
2. Screw Diameter(mm): 100, 160, 200, 250, 315, 400, 500, 630, 800,
1000, 1250
3. Automatic
4. Material: Sanitary Stainless Steel SUS304
5. Function: Grist Transit
6. Over 10years strong factory
7. Customized service
Feature
| Main technical parameters |
Specifications and models | YDL100 | YDL160 | YDL200 | YDL250 | YDL315 | YDL400 | YDL500 | YDL630 | YDL800 | YDL1000 | YDL1250 |
Screw Diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch(mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed of revolution (rpm) | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
| Conveying capacity (m3/h) | 2.2 | 7 | 13 | 22 | 39 | 62 | 92 | 145 | 200 | 300 | 380 |
Description
A screw feeder conveyor or auger conveyor is a mechanism that uses
a rotating helical screw blade usually within a tube, to move
liquid or granular materials. They are used in many bulk handling
industries. Screw conveyors in modern industry are often used
horizontally or at a slight incline as an efficient way to move
semi-solid materials, including food waste, wood chips, aggregates,
cereal grains, animal feed, and many others.
The screw feeder conveyor consist of a trough or tube containing
either a spiral blade coiled around a shaft, driven at one end and
held at the other, or a "shaft-less spiral", driven at one end and
free at the other. The rate of volume transfer is proportional to
the rotation rate of the shaft. In industrial control applications
the device is often used as a variable rate feeder by varying the
rotation rate of the shaft to deliver a measured rate or quantity
of material into a process.
Screw feeder conveyors can be operated with the flow of material
inclined upward. When space allows, this is a very economical
method of elevating and conveying. As the angle of inclination
increases, the capacity of a given unit rapidly decreases.
Application
The screw conveyor is widely used for conveying powder, granule or
small block materials, usually it could be used with the suit
sieving machine.
Features:
1.The motor reducer could be installed on the top or the bottom.
2.Conveyor has big transport capacity, long distance available.
3.Stable and controllable start, continuous and highly efficient
operation.
4.The conveying could be the level or the inclined.
5.The blade could be entity spiral or belt spiral.
Main feature of the screw feeder conveyor
1. The machine is especially suitable for conveying all kinds of
powdery material, also can be used for conveying all kinds of
granular or flake materials.
2. Using unique designed stainless steel screw-shaped blade.
3. High conveying capacity, safe and reliable operation, easy to
disassemble and clean.
4. Good adaptability and long service life.
5. Good sealing quality and rigidity.

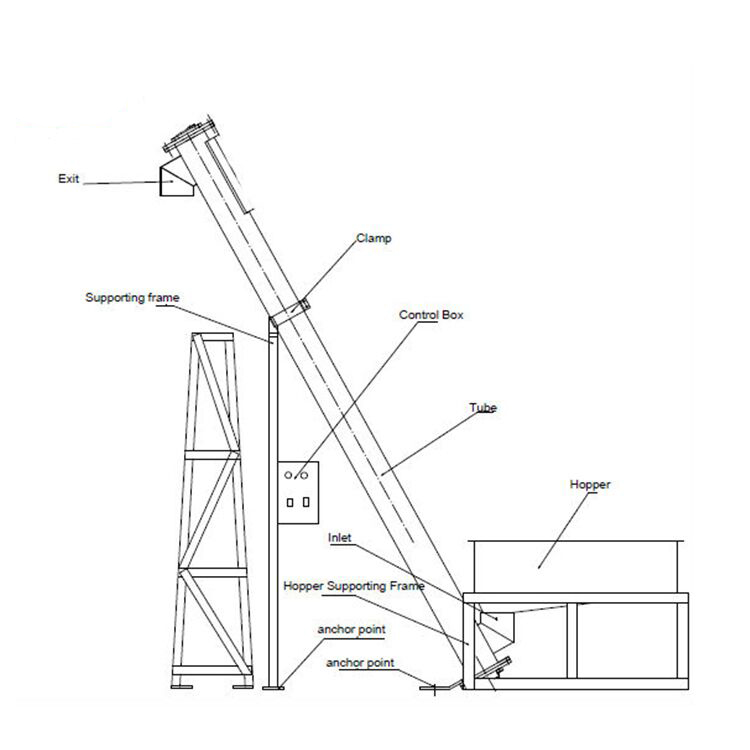

The Drawings
