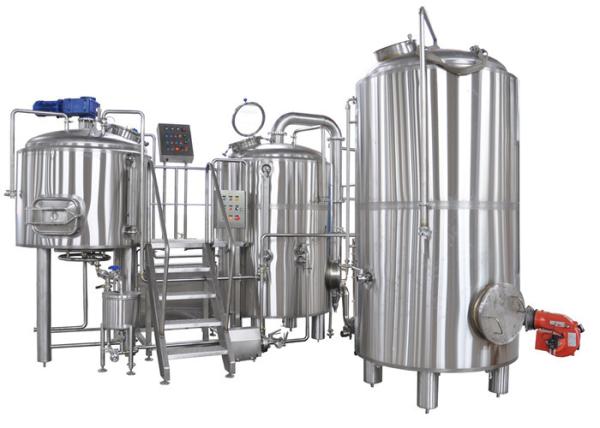

    50-5000L Clean And Polish 2 Vessel Brewhouse Brewing Equipment Steel True Color

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    50-5000L Clean And Polish 2 Vessel Brewhouse Brewing Equipment Steel True Color


    50-5000L Clean and Polish Steel-True Color 2 Vessel Brewhouse Brewing Equipment


    Beer Brewery Equipment

    1) Automatic /semi-automatic operation system, only 1 or 2 brewers operate

    2)Different capacity from 50L to 5000L per batch, meet your different requirements.

    3) The Brewery system integrates advanced technology with the art-of-century beer brewing process & technique in Europe and U.S.A.

    4)The whole set Beer Brewery equipment is made of sanitary stainless steel.

    5)We offer a wide array of Beer Brewery Equipment that will accommodate any budget or production goal that each customer might have.


    Brewing Equipment System Consisting


    1. Milling SystemMalt Milling
    2. Brewhouse SystemMash/Lauter Tun
    boiling/whirlpool Tank
    Yeast adding tank
    Plate Heat Exchanger
    Wort Pump
    Accessories:1Brewhouse system pipeline; 2. Level meter 3. Working Platform; 4. Yeast adding tank; 5. Venturi Tube; 6. Beer hose; 7. Rake; 8. Sugar Measuring Cylinder
    3. Fermenting SystemFermentation Tank
    accessories: 1.CIP Pipe; 2. Pressure Gage; 3. Solenoid Valve;
    4. Vacuum Valve; 5. Cooling Pipe; 6. Thermal Insulation Pipe;
    4. Cooling SystemIce Water Tank
    Chiller unit
    Ice Water Pump
    Relative Pipes and Valves
    5. CIP SystemAlkaline Tank
    Sterilization Tank
    Pump and Valve
    6. Controlling SystemMashing Control Panel
    Fermenting Control Panel

    Brewery equipment manufacturing details:


    Mirror Polishing
    1. Inside Polishing: Overall polishing to 0.2-0.4μm without
    dead corner .
    2. Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
    3. Purpose: The tank itself has high precision and small details of the tanks have to be observed by a telescope.
    4. Function: To make tanks become tidy and smooth, beautiful and durable.
    100% TIG Welding
    1. All welding is TIG welding.
    2. All welding is double side welding.
    3. Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.
    4. Function: Make tanks become durable and strong.
    Plow knife/Raker knife
    1. Equipped in Mash/Lauter tank, used for storing the wort, and mashing.
    2. Stir evenly and fast, to make the wort generate a high concentration.
    3.
    Its operation will be controlled by the motor and the reduciton gear.
    4. Based on our brewery formula, filtration will cost 1 hour.
    Plate bottom/Filter plate
    1. Equipped in Mash/Lauter tank, Laser cutting T-wires, Plate gap: 0.8mm
    2. This filter plate is made on a complete stainless by CNC lathe, it is strong, filter fast and leak no
    grist.
    3. Function: Use for Separating wort and impurities.
