Manual Or Semi - Automatic 2 Vessel Brewhouse Wort Fermentation Function

Manual or Semi-automatic 2 Vessel Brewhouse Wort Fermentation

1. Brewery equipment Introduction
Microbrewery Machine with CE Certification is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery machine(mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service includes: complete set of microbrewery equipment, installation turnkey, recipes and technology of branded beers, staff training and more. Microbrewery Machine with CE Certification comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

2. Brewery Specifications

Equipment Condition: New

Brand: YDL or OEM

Application: Beer brewing in hotel, restaurant, brewpub or microbrewery

Voltage: 3phase/380(220,400,415,440)v/50 (60)Hz

Power Request: 15-70Kw depends on the size

Area Request: 20-100M2 depends on the size

Weight: Various in different models

Process: milling, brewing, fermentation, filtration, filling

Certificate: CE ISO

Warranty: 3 years from commissioning

3. Full set beer brewery Catalogue

Brewery System	Capacity/Volume
Home brewery series	20L,30L,50L,100L pilot/home brewery system
Commercial brewery series	100L--1000L, 3BBL--10BBL pub/restaurant,microbrewery plant
Microbrewery series	200L,300L,500L,1000L
Pub, Hotel, Bar Brewery	500L,800L
Large brewery plant	1000L--5000L, 10BBL---40BBL brewery plant
Fermentation	100L~10000L conical fermenters, dimple plate jacket
Bright beer tank	100L~10000L serving tanks, BBTs, dimple plate jacket
Beer selling	beer tower, beer selling tank, stainless steel beer kegs, keg filling, keg washing, bottle filling, and etc.

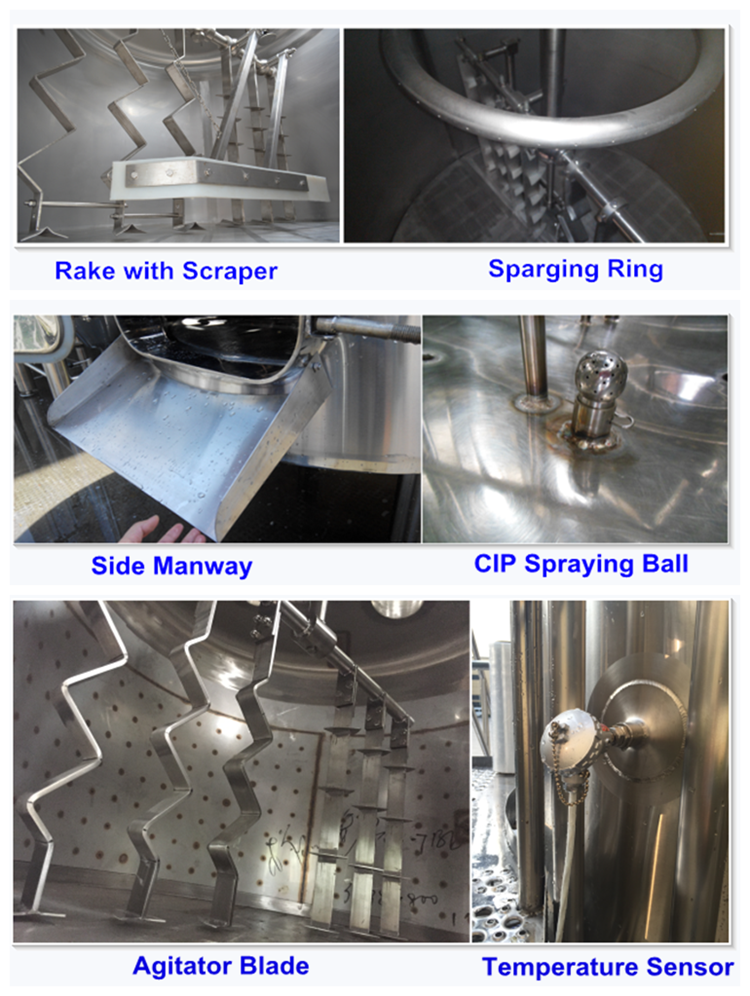

4. Components of Brewhouse

Name	Size/ Volume/ Quantity	Technical Parameter
Mash/ Lauter	Double wall stainless steel	1. Material: thickness: 3.0mm;
	Gross capacity:1300L	2. External: thickness: 1.5mm;
	Useful capacity:1000L Outer :Ø1400mm;	3. Cylinder: thickness: 2.0mm.
	Total height: 2600 mm;	4. Inner surface treatment: welds grinded to Ra 0.4µm.
	Filter board gap≤0.7mm	5. Insulation: Polyurethane-thickness 100 mm.
	Agitator with power;	6. Temperature way: Double metal thermometer
	- 1pc	7. Outsourcing surface: Weld polishing processing
		8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
		9. CIP 360 degrees Omni bearing cleaning
Boiling /Whirlpool	Double wall stainless steel	1. Material: thickness: 3.0mm;
	Gross capacity:1300L	2. External: thickness: 1.5mm;
	Useful capacity:1000L Outer :Ø1400 mm;	3. Cylinder: thickness: 2.0mm.
	Total height: 2600 mm;	4. Inner surface treatment: welds grinded to Ra 0.4µm.
	Mash tank kettle agitator with power	5. Insulation: Polyurethane-thickness 100 mm.
	Adding: Blender	6. Temperature way: Double metal thermometer
	- 1pc	7. Outsourcing surface: Weld polishing processing
		8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
		9. CIP 360 degrees Omni bearing cleaning
Hot water tank	Double wall stainless steel	1. Material: Inner(SUS304),thickness: 3.0mm;
	Gross capacity:1300L	2. External-Jacket(SUS 304 thickness: 3.0mm;
	Useful capacity:1000L Outer :Ø1400 mm;	3. Cylinder (sharp type, SUS304), thickness: 3.0mm.
	Total height: 2600 mm;	4. Inner surface treatment: welds grinded to Ra 0.6µm.
		5. Insulation: Polyurethane-thickness 100 mm.
		6. Temperature way: Double metal thermometer
		7. Outsourcing surface: Weld polishing processing
		8. Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
		9. CIP 360 degrees Omni bearing cleaning
