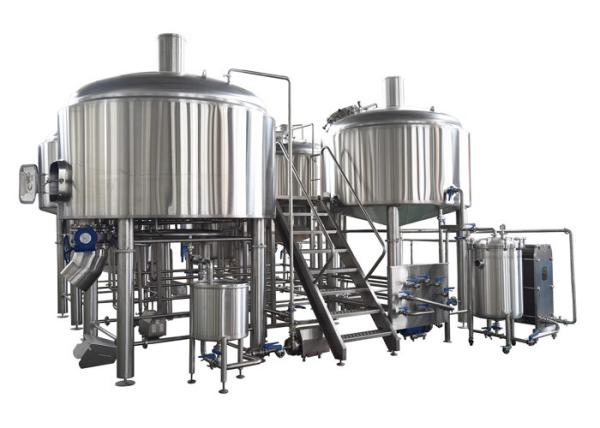

35HL 4 Vessel Brewhouse Fabricated by SS304 Heated By Steam For Mashing Process​

The brewhouse is used to get quality wort by mashing, lautering, boiling and whirlpooling etc. In the independent commercial or industrial beer plant, the brewhouse is usually customized to four even five vessel for getting a super output, 4-5 batches per day. Accordingly, the brewmasters would work in shifts to keep the brewhouse running at day and night. In order to save labor efficiently, the control system of brewhouse equipment usually be much more automatic, such as the pneumatic valve, PLC touch screen etc. It is in compliance with modern brewery standards and specifications. Besides, in some beer plant, the brewmasters would add secondary ingredient as adjunct starch source, like rice, corn etc. If so, a extra cooker had better be equipped in the brewhouse.

Quick Overview

Main Configuration

A. 35 HL mash tun with steam heating
-2mm exterior shell and 3mm interior shell
-Glass manway
-Agitator with VFD controled motor and turbine reducer

B. 35 HL lauter tun
-2mm exterior shell and 3mm interior shell
-Glass manway
-Grain rake with VFD controled motor and turbine reducer
-Automatic lifter of spent grain scraper blade
-Inline wort lauter sight glass
-Laser cutting V-wire False Bottom/Filter
-Bottom mounted grain outdoor

C. 35 HL brew kettle with steam heating
-2mm exterior shell and 3mm interior shell
-Glass manway
-Agitator with VFD controled motor and turbine reducer
-Sanitary leveling sight glass
-Steam vent with condensate ring for kettle stack

D. 35 HL whirlpool tun
-2mm exterior shell and 3mm interior shell
-Glass manway
-Anticlockwise Tangential whirlpool inlet in Northern Hemisphere
-Clockwise tangential whirlpool inlet in Southern Hemisphere

E. Other auxiliary equipment
-70 HL hot liquor tun with steam heating
-1200L cooker
-flexible auger/bucket elevator
-2450L hoppper and a malt hydrator
-Pneumatic valve
-Flow meter
-Hop back
-Sink and platform
-35m2 heat exchanger
-PLC control with touch screen

According to client’s needs, various combinations of brewhouse can be offered as followings:

2 Vessel Brewhouse

• Mash/Launter Tun + Boil Kettle/Whirlpool Tun
• Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
• Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank

3 Vessel Brewhouse

• Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
• Mash (kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun

4 Vessel Brewhouses

• Mash (kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool Tun

Heating Methods

• Steam Heating: dimple plate jacket with inlet/outlet fittings for steam heat transfer;
• Electrical Heating: use electrical heaters to heat the medium in the jacket
• Gas fired Heating: use gas burner at bottom to heat tank directly
•
