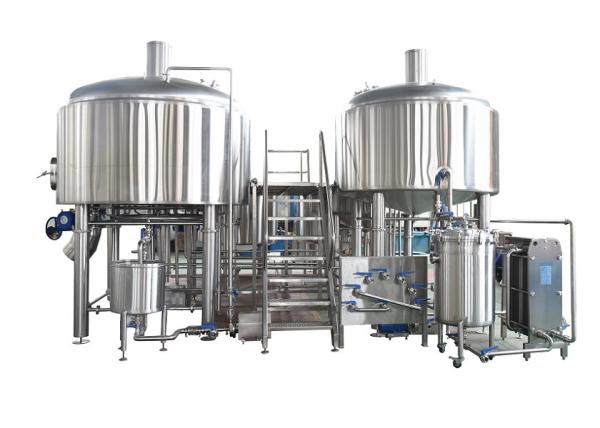

    1500L Stainless Steel Large Brewing Equipment Semi - Automatic In Beer Production

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 30 / set / month
    Delivery Time : within 30-60 days
    • Product Details
    • Company Profile

    1500L Stainless Steel Large Brewing Equipment Semi - Automatic In Beer Production

    1500L Stainless Steel Large Brewing Equipment In Beer Production With Semi-Automatic


    The whole set equipment is made of SUS304 stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Widly used in brewery,bar, hotel etc.


    Brewhouse material: SUS304 stainless steel, half red copper, red copper can be choose as your like.

    1500L Beer Brewing System
    Milling System
    Components
    Capacity
    Specification
    Grinding System
    Miller
    500KG/H
    Double Roller,Noise<40db
    Brewing System
    Components
    Capacity
    Specification
    Brewhouse System
    Mash/Lauter tun
    1500L
    Mashing Process:Decoction.Infusion.Multi-step infusion
    Brew Kettle/Whirlpool Tank
    1500L
    Heating sources: steam, electric, direct fire
    Hot WaterTank
    2000L
    Matereial: SUS304 stainless steel/ red copper
    Heat exchanger
    15SQM
    Stainless steel plate
    Fermentation System
    Fermentation Tank
    1500L/3000L
    Top manway/Side manway
    Drying hop port to brew IPA
    Dimple Plate Cooling jacket
    Carbonation port to fill CO2
    Yeast Adding Tank
    15L
    SUS304 Stainless Steel
    Cooling System
    Glycol Water tank
    4000l
    Equiped with PU level indicator
    Chiller
    2*7HP
    UL/CE certified electric elements,Copeland compressor
    Pump
    3T
    Cleaning System
    Disinfection Tank
    150L
    SUS304 full welded
    Alkali Tank
    150L
    Pump
    3T
    Control System
    Control Cabinet
    Manual PLC/HMI
    Manual/Semi-automatic/Automatic
    Optional
    Auger System
    Grain Case
    Grist Hydrator
    Piping flow panel for Brewhouse
    Brewhouse Separate PLC Controller
    Customized

    brewhouse

    Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combinationes. The capacity above 1000L, we add dimple plate jacket in the side of the brewhouse, can save nearly 40 minutes per batch.

    fermentation tank

    With cooling jacket: Dimpled plate on cone and side,thickness:1.5mm

    Top manway or side manway can be choose as your like.Interior Finish: Overall polishing to 0.4μm without dead corner


    Accessories

    High quality and sanitary beer brewery equipment accessories, with long service life, saft to user. Detail is also important, we focus on it.
