CE 1000L PLC Control Stainless Steel SUS304 Steam Heating Pub
Brewing Systems
Description
To make the best beer possible, the brew house is the key. On the
basis of absorbing European advanced and experienced beer machinery
technology, Our Brew house can fulfill various brewing
technologies, variable tastes or specific capacities.
10BBL | 20BBL | 30BBL | 40BBL | 50BBL brewhouse sizes are produced
standardly, or even larger for customers. The Brew house can be
heated with Steam, Gas fired, Electric etc. The system composed of
Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four
tanks can be combined together to meet different requirement of
brew system.
All the tanks certified stainless steel material for all tanks,
with 100% TIG welded joints and seams with sanitary interior
polish. All tanks use Tri-clamp connections, are designed for up to
14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to
meet your brewery’s space and height restrictions.
Quick Details
1. Products: Pub Brewing Systems
2: Capacity: 1000L
3: PLC Control
4. Material: Sanitary Stainless Steel SUS304 Or SS316L
5. Function: Beer Brewery
6. Over 10years strong factory
7. Customized service
Feature
| steam jacket brew kettle 1000l brewhouse main product description |
| 1 | Malt milling system | Malt mill machine,grist case,malt elevator |
| 2 | Mashing system | Type1: Mash/Lauter tun;Boiling kettle/Whirlpool Type2: Mash/Boiling kettle;Lauter/Whirlpool Type3: Mash tank; Lauter tun; Boiling/whirlpool Type4: Mash/Lauter tun; Boiling kettle;whirlpool |
| 3 | Fermentation system | a. Conical Fermenter(CCT) b. Brite beer tank(BBT) c. Yeast addition tank d. Related parts: PRV, Bunging device, Solenoid valves, Butterfly
valves and other parts |
| 4 | Cooling system | Glycol tank; glycol pump; chillers |
| 5 | Cleaning system | Disinfection tank, Alkali tank, CIP pump |
| 6 | Control system | PLC or Instruments control system With Siemens VFD |
| 7 | Assistant system | Keg filler, keg washer; Beer filter system; Bottle line; Water treatment system; Keg and other related parts |
Mashing system
Stainless steel brew kettle is various in combination of vessels,
of course to achieve the same four steps mashing, lautering,
boiling, whirlpool, by special brewing intentions of brewer
including wort output, wort gravity, sparging water, brews in
certain time, brewing method etc.

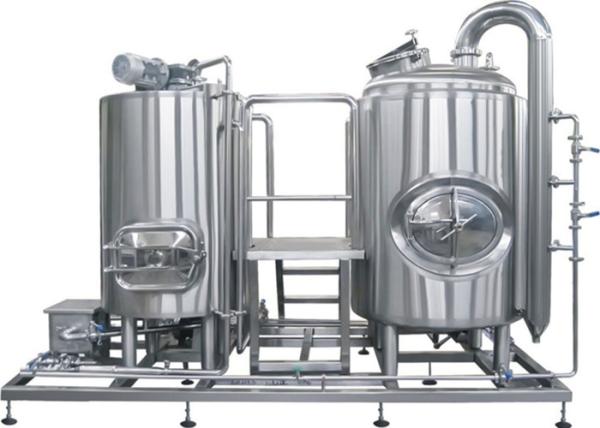

2 Vessel Brewhouse
Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil
Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3 Vessel Brewhouses
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun
4 Vessel Brewhouses
Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool
Fermenter System
-Insulation: Polyurethane, thickness=80mm;
-Stainless steel dimple cooling jacket on cone and side;
-CIP arm and 360° sprayball;
-Full sanitary pressure valve, relief valve, sample valve;
-Shockproof pressure gauge on CIP arm;
-Coolant inlet and outlet;
-Side/top manway, dish top, 60degree cone bottom(adjustable);
-Interior and exterior finish polished to a sanitary finish;
-Inner tank finish pickled and passivated;
-Tri clamp discharge arm with butterfly valve;
-Carbonation port and stone;
-Thermowell for high accuracy temperature sensor;
-Stringent tank leakage test by water and pressured gas;
-Stringent jacket leakage teat by water and pressured gas;
Application
Our beer brewing equipment include malt crushing system,
saccharification system, fermentation system, glycol system, CIP
cleaning system, controlling system, packaging system and all
complete set of bar selling system, or Micro beer brewery. We could
provide customization service, OEM service. Different type of
equipment configuration combination could be made as per customer’s
requirement.
