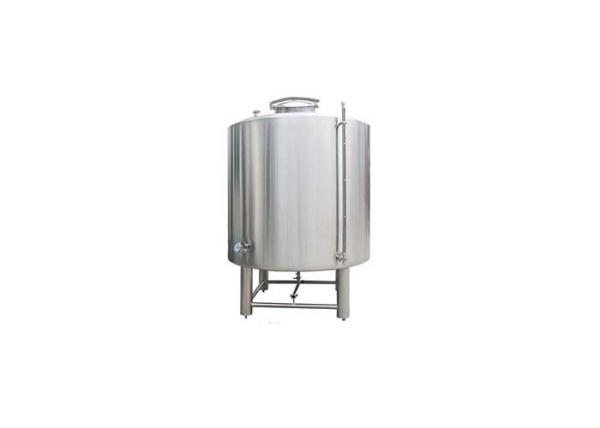

3000L Steam Heated Hot Liquior Tank With 100% TIG Welding And
Tri-clamp Connections
Stainless Steel Vertical hot Liquor Tank Introduction
Specifications :
* Capacity: 100L-10T
* Thickness : 3mm
* Materials: SUS304
* Appearance : Sealing Ellipsoidal head left and right , horizontal
type
* Inside the tank the Work pressure is atmospheric
* Accessories
(1): Feeding hole & Discharge hole ,
(2): Breathing hole ,
(3): Sanitary Quick-open manhole ,
(4): Glass tube liquid meter ,
(5): 360°automatic cleaning ball
(6): Spare hole etc.
Function Of Hot Liquior Tank
This is a kind of stainless steel tank/ vessel. It can be used for
storing chemicals inside or producing chemical products by
reaction. It can be used in brewing, foodstuff, beverage,
pharmaceutical industry, adhesive production and other chemical
industries. It has great advantages as the following:
A) Good quality materials (eg: SS plates, flanges, pipes, bolts,
nuts, etc. ) made and sourced from validated manufacture; The
material of the tank is anti-corrosion and abration resistant.
B) Fine procedure conducted by qualified and skilled workers. The
quality ratio of welding seams can reach 95% before RT.; The
internal and external surfaces are polished, with roughness of
Ra0.02um.
C) Fine appearance. The surface of the machine (both inside and
outside) looks good and feels smooth, and welding seams are treated
perfectly, so you cann't easily find the trace of welding.
D) Strict inspections following each production procedure (material
incoming, component forming, welding, assembling, surface
treatment, final completion).
E) Environment- friendly; All these equipments are manufactured as
per optional standard of GMP, ISO9001 and others to meet our
customers' requirements. The reactor can be made in variable
specifications and different sizes according to our customers'
need.
F) While boiling, it is useful to recover some of the energy used
to boil the wort. On its way out of the brewery, the steam created
during the boil is passed over a coil through which unheated water
flows. By adjusting the rate of flow, the output temperature of the
water can be controlled. This is also often done using a plate heat
exchanger. The water is then stored for later use in the next mash,
in equipment cleaning, or wherever necessary
Data sheet of Hot Liquior Tank
Work Volume | Dimension of tank | Total height | Insulated layer | Diameter of inlet&outlet |
| (L) | (mmxmm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2300 | 60 | 38 |
| 600 | 920*1000 | 2400 | 60 | 38 |
| 700 | 990*1000 | 2400 | 60 | 38 |
| 800 | 950*1220 | 2550 | 60 | 38 |
| 900 | 1010*1220 | 2700 | 60 | 38 |
| 1000 | 1060*1220 | 2700 | 60 | 51 |
| 2000 | 1340*1500 | 2750 | 60 | 51 |
| 3000 | 1410*2000 | 3500 | 60 | 51 |
| 5000 | 1910*2000 | 3850 | 60 | 51 |
| 10000 | 2300*2440 | 4500 | 60 | 51 |
| 15000 | 2530*3000 | 5200 | 60 | 51 |
| 20000 | 2640*3660 | 5800 | 60 | 51 |

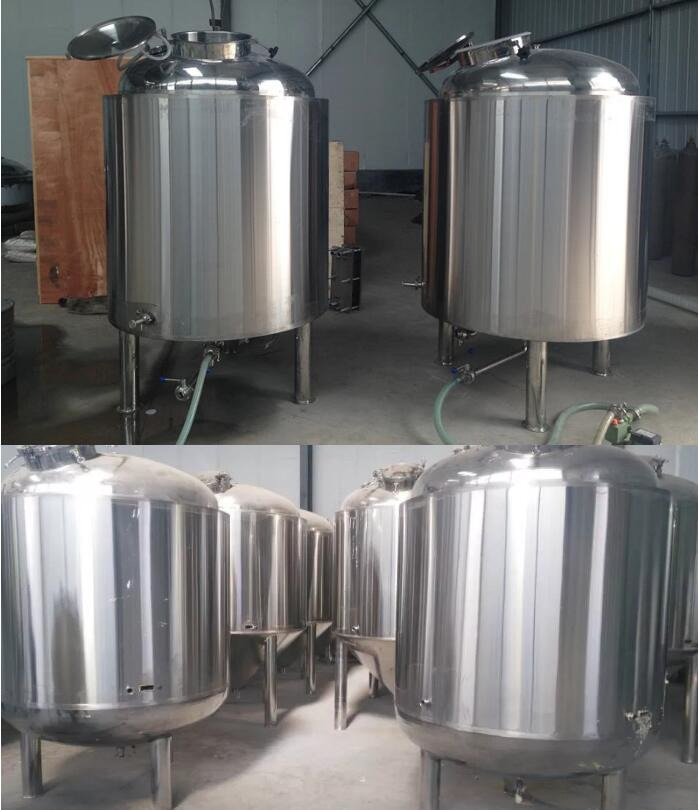

Production details showcase of beer brewery equipment, micro
brewery
