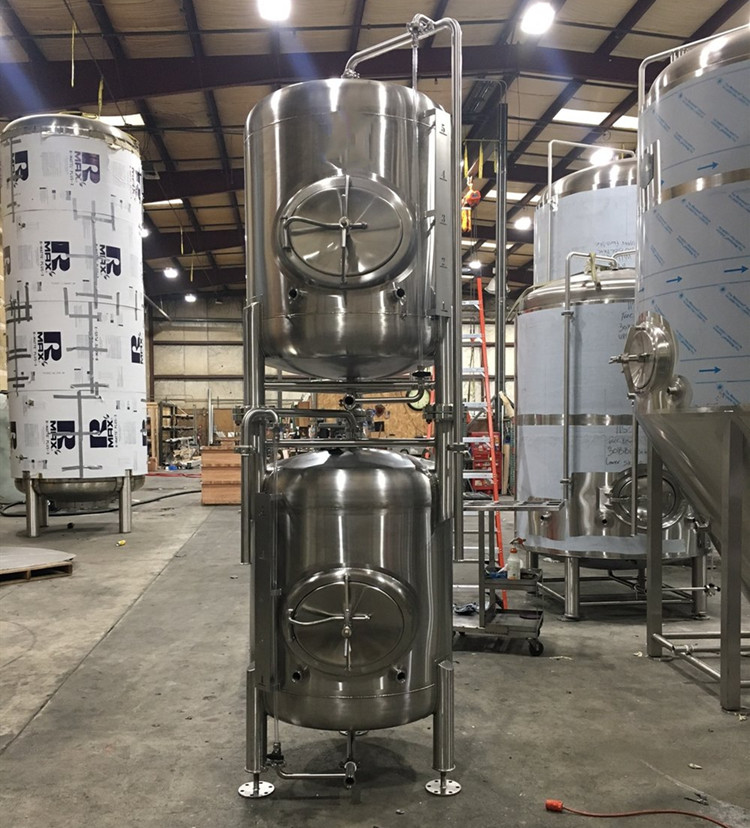

500L Vertical 304 Stainless Steel Bright Beer Tank Serving Beer
1) Bright tanks with vertical or Horizontal style
2) With CO2 filling port and device
3) to keep the beer with longer time to get the more tasteful beer
4) With CIP washing device
All parts of brite beer tank are made of high-quality stainless steel (surface can
be polished with 2B or high-precision), strictly comply with the
minimum thickness requirements in the national standards,
non-pressure bearing components are also made of 2mmhigh-quality
stainless steel surface (optional 2B or high-precision polishing),
real materials and professional design and manufacturing are the
guarantee of quality. We attach great importance to international
standards and provide products with the same quality as Europe and
the United States. In Europe and the United States, Australia has a
very high market share.
Brite tank function: store beer and add CO2.
Features:
New Type butterfly valves, Perlick sample valve and so on
100% certified Brushed 304/316 sanitary food-grade stainless steel
in all of our components. Ribbon polished for the welded place.
4 stainless steel legs with stainless leveling footpads
Interior and exterior finish polished to a sanitary finish
Interior finish pickled and passivated(Mirror Polishing for
optional)
Fully welded exterior shell
Dished head and bottom, with an average of 25% headspace
Carbonation port with stoneSide manway door, shadowless
Dual-zone dimple cooling jackets (3 or more on larger tanks)
Description
Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation
Vessel), primary fermentor or uni-tank as they are used both for fermenting and lagering. Fermenting is
the process during which the yeast transforms the wort into beer. Lagers take place after fermenting and is the time given to the beer to
stabilize and age after fermenting.
Vertical Bright Beer Tank is often also called serving tanks, tax determination tanks or clear
beer tanks (=CBTs), Vertical Bright Beer Tanks (=BBTs) or
maturation or conditioning tanks. These tanks are used for the
storage of the beer prior to being served or packaged. Depending on
their application the beer serving tanks can be glycol jacketed or
can be located in a cold room. For brewpubs serving is often done by pumping or pressurizing the beer
toward the serving location.
| 1 | Total capacity | 1250L |
| 2 | Effective capacity | 1000L |
| 3 | Size | D1210*H2250mm |
| 4 | Weight | 360.50kgs |
| 5 | Material | SUS304 |
| 6 | Exterior shell | 2mm |
| 7 | Interior shell | 3mm |
| 8 | Insulation material | PU |
| 9 | Insulation TH | 80mm |
| 10 | Top type | Dished head |
| 11 | Manhole Type | Side |
| 12 | Manhole size | 530x430mm |
| 13 | Inner cone | 150 degree |
| 14 | CIP pipe Diameter | Φ32 |
| 15 | CIP ball(1) | 360º Rotating spray ball |
| 16 | Temperature sense | PT100 sensor |
| 17 | Thermowell diameter | Φ10 |
| 18 | Inner Polishing | 0.2-0.4micron |
| 19 | Design pressure | 0.2Mpa |
| 20 | Cooling type | Dimple cooling jacket |
| 21 | Cooling area | 2.5M2 |
| 22 | Cooling jacket inlet | G3/4 |
| 23 | Cooling jacket outlet | G3/4 |
| 24 | Carbonation stone | 1pc |
| 25 | Pressure gauge | 1pc |
| 26 | Sample port | Φ38 |
| 27 | Drain outlet | Φ51 |
| 28 | Safety valve (PVRV) | Φ51 |
| 29 | Liquid level indicator | Φ19 |
