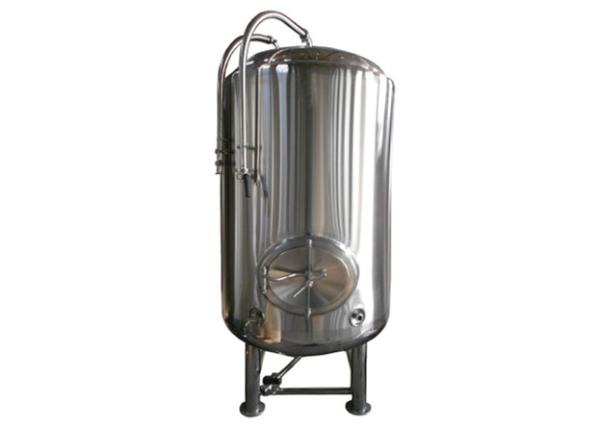

    500L - 1500L Customized Voltage Wine Fermentation Tank Brite Tank Beer Storage

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    500L - 1500L Customized Voltage Wine Fermentation Tank Brite Tank Beer Storage


    500L - 1500L Customized Voltage Bright Beer Tank Brite Tank Beer Storage

    Standard features:


    Material: Sanitary SUS304 or 316 according to your request.

    The polyurethane insulation layer, 80mm

    Top/middle manways for cleaning.

    CIP spray ball for cleaning.

    Vertical type, 150° degree conical bottom, 2 cooling zones

    Pressure valve, relief valve

    CO2 relief valve

    Dimple plate cooling jacket.

    Coolant inlet and outlet

    Sample valve

    Side manway

    Top, Dry Hopping Port

    CIP connections

    Wort inlet and yeast outlet

    Racking Arm

    Temperature and pressure gauges



    CE ISO Dimple Jacket 2000L SUS304 316L Beer Serving Tank
    Our Bright Serving Tank available from 1 Barrel to 100 Barrels w/ an average 10% Head Space. All tank have a Dish top & bottom, Cylinder body. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30
    PSI. We can custom fabricate any tank to meet your brewery's space and height restrictions.
    NAME BRAND,


    HIGH-QUALITY VALVES AND FITTINGS WITH EVERY TANK!
    Standard Features:
    •Dish Cover at the top & bottom, with an average of 10%head space
    •Dimple plate jacket for glycol cooling;
    •Interior shell: 304 stainless steel, thickness 3mm /11 gauge
    •Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
    •Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
    •2" Polyurethane insulation
    •Interior surface to finish pickled and passivated
    •Exterior surface to brushed, #4 finish
    •580x480mm Side manway, shadowless


    YDL-500Wworking capacity is 500L
    typehorizontal type or vertical type
    inner materialstainless steel 304
    outer materialstainless steel 304
    working volume5HL
    inner polish0.4um
    insulationPU
    insulation thickness80mm
    water jacketstainless steel 304
    manhole330*350mm
    cleaning ball360°rotary
    pressure discharge pipe¢32
    top/bottomseal head
    partsthermometer
    pressure gauge
    breath valve
    safe valve
    sample valve
    drain outlet


    ItemsEquipmentSpecificationQuantity
    Malt MillerMalt Miller300kg/hour1
    Brewhouse systemMash tun&lautering tun500L1
    Brew kettle&whirlpool500L1
    Hot liquid tank1000L1
    Plate heat exchanger5m21
    Pump3m³/h1
    Fermentation systemFermenter1000L6
    Yeast adding tank10L1
    Wort oxygenator1
    Cooling systemGlycol water tank1000L1
    Cooling compressor5hp1
    Pump3m³/h1
    Filter systemKieselguhr filter machine1
    Bright beer tank500L1
    CIP washing systemAlkali tank50L1
    Sterilization tank50L1
    Pump3m³/h1
    Control systemSiemens PLC control box1
    Spare partsAll spare parts
