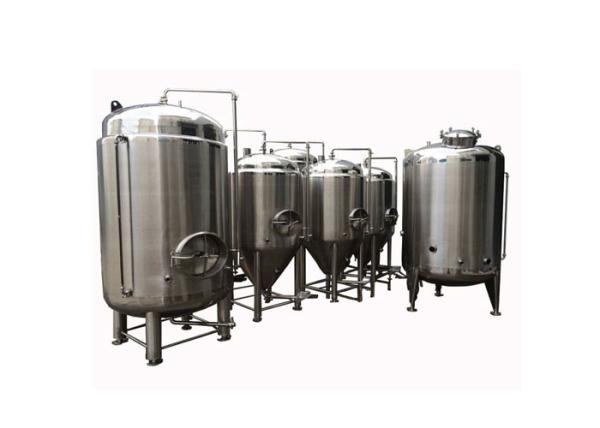

CE ISO 1000L Stainless Steel SUS304 Bright Beer Tank With Dimple Jacket

Description

Our Brite Tank available from 1 Barrel to 100 Barrels w/ an average 10% Head Space. All tank have a Dish top & bottom, Cylinder body. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30

PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions

Dimension FYI

Quick Details

1. Products: Bright Beer Tank

2: Capacity: 1000L

3: With Dimple Jackets

4. Material: Sanitary Stainless Steel SUS304 SS316L

5. Function: Beer Purified

6. Over 10years strong factory

7. Customized service

Feature

Design pressure 45 psi (3bar); working pressure 15psi (1bar)

4 stainless steel legs with leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish bright polish to 0.6~0.8 μm, hygiene surface

All Interior welds ground to a smooth0.6~0.8 μm sanitary finish

Flanged and dished head top and bottom

Carbonation system with micron stone

Temperature sensor well

All clamps and gaskets to attach all accessories

Tank complete with piping, fittings, sanitary valves and all parts.

If you are would like to change, add, remove or modify any part of the tanks, we can accommodate that.

Specific fitting sizes, changes and locations will be set during the design process after a deposit is taken.

Accessories

1: Sample Valve x1;

2: Pressure relief/vacuum valve x1;

3: Temp. sensor / thermometer x1;

4: Carbonation Stone x1;

5: Bottom outlet with butterfly valve x1;

6: Spraying Ball with down tube x1;

7: Stainless pipe legs with adjustable footpads x4;

Application

Bright beer tanks are often also called serving tanks, tax determination tanks or clear

beer tanks (=CBTs), bright beer tanks (=BBTs) or maturation or conditioning tanks.

These tanks are used for the storage of the beer prior to being served or packaged.

Depending on their application the beer serving tanks can be glycol jacketed or can

be located in a cold room.For brewpubs serving is often done by pumping or pressurizing

the beer toward the serving location.

Products and the details

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
