    SS304 Brewing Accessories Tubular / Inline / Clamp Type With DN150 Sight Glass

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDLSG
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 10000 sets/year
    Delivery Time : 30-60 days
    • Product Details
    • Company Profile

    SS304 Brewing Accessories Tubular / Inline / Clamp Type With DN150 Sight Glass

    3/4" to 6" SS304 /316 Tubular / Inline /Clamp Type Sight Glass Brewing Accessories With Food Grade SS304 /316

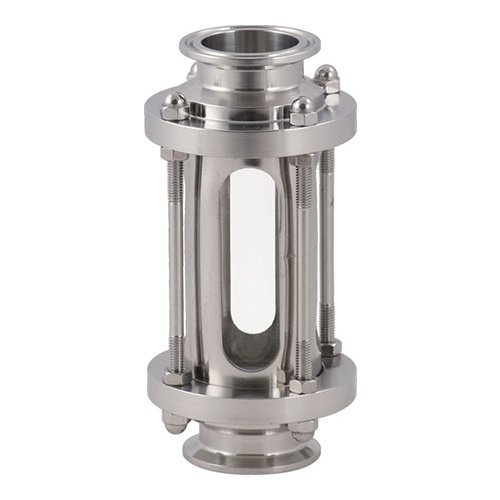

    Sight Glass Introduction


    It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline.


    Availably standardSMS,DIN,3A,IDF,RJT, BS, ISO
    Material QualitySS304,SS304L,SS316,SS316L
    SpecificationDN150
    Availabe ConnectionWelding ends,triclamp ends,union ends,male ends
    Seal MaterialSilicone, EPDM, Viton, NBR
    GlassHeavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
    Tubing; Acrylic Tubing; etc
    Protection Lens CoverPolycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel
    Screw BlotFull Stainless Steel
    StructureStraight way,cross
    Pressure range0bar~10bar
    Machine ProcessingThe most advanced CNC machine from Japan for processing
    Continuous working temperature20°C ~ +135°C (EPDM,Silicone)
    Special Designwe can produce according to customer drawings

    Available SizeDN65,DN80,DN100,DN125,DN150
    Available MaterialSs304, Ss304L ,Ss316, Ss316L
    Available StandardSMS,DIN

    Performance of Tank Lamp Sight Glass


    Operating voltage12V / 24V / 36V / 220V
    Power20W / 50W / 100W

    Features of Tank Lamp Sight Glass


    Luminous flux220 lumens, lamp life: 50,000 hours, do not worry about frequently changing a light bulb, and the 5th battery 14500 lithium battery-powered GM, do not have to worry about power, luminous tail.
    Lamp1W using a bright LED lamp, Taiwan chip, domestic assembly.
    PowerUsing a 5 batteries, power lasting more powerful, it is recommended to use high mAh rechargeable battery, more power, LED lights brighter, while the economic benefits.

    Data Sheet

    Availabe ConnectionWelding ends,triclamp ends,male ends
    Seal MaterialSilicone, EPDM, Viton, NBR
    GlassHeavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc
    StructureStraight way,cross
    Pressure range0bar~10bar
    Machine ProcessingThe most advanced CNC machine from Japan for processing
    Continuous working temperature20°C ~ +135°C (EPDM,Silicone)
    Special Designwe can produce according to customer drawings

    Parts Name of Tank Lamp Sight Glass

    NONAME
    1Body
    2High Pressure Glass
    3Male
    4Lock Nut
    5Seal
