1.5" Sanitary Stainless Steel Carbonation Stone Oxygenation Stone
Of Brewing Accessories
The component quality of a material is hard and brittle, small
expansion coefficient, thermal shock, not easy to deformation, good
chemical stability, acid resistance, strong do not reaction with
acid, alkali resistance is poorer, rod to corrosion at high
temperature decomposition.The bending can be adjusted as needed.Due to the high temperature and high conductivity of the carbon
rod, the chemical stability is good.Has been widely used in
national defense, machinery, metallurgy, chemical, casting,
non-ferrous metal, light, and other fields, especially black carbon
rod, is also used as ceramic, semiconductor, medical, environmental
protection, laboratory analysis and other fields, become the most
widely used non-metallic materials today.When cutting steel, it is
not necessary to use flammable, explosive gas, low cost and safe
operation.
Carbonation Stone | Tri Clamp 1.5 in. x 4 in. w/ 1/4 in. NPT -
SS316
Carbonation Stone | Tri Clamp 1.5 in. x 8in. w/ 1/4 in. NPT - SS316
Carbonation Stone | Tri Clamp 1.5 in. x 12in. w/ 1/4 in. NPT -
SS316

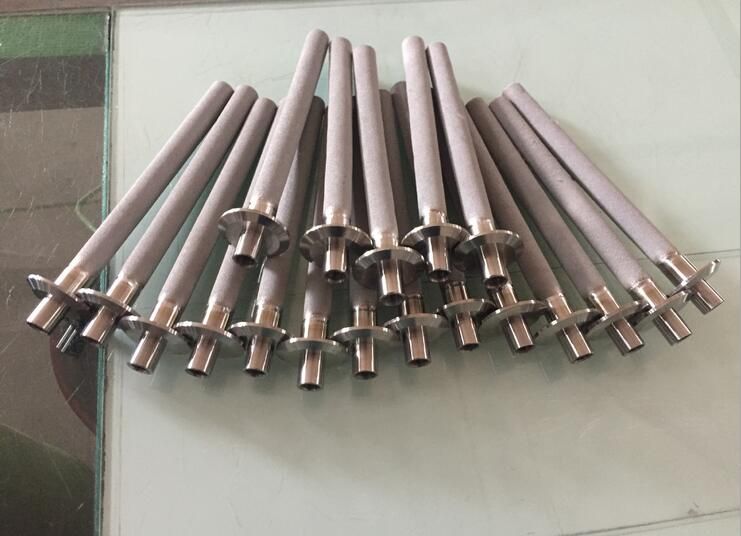

Carbonation stones, typically an accessory found on brite beer
fermentation tanks, are designed to be directly mounted via a Tri
Clamp fitting. Each carbonation stone, made from sintered stainless
steel SS316, is a submersible porous body that diffuses CO2 gas
directly into brewing liquid. In an ideal system, the stone is
mounted on the lowest part of the brite tank providing for the
longest distance for CO2 to travel to the head. Some brewers use a
carbonating stone inside a conical fermenter (or Uni Tank), rather
than a brite tank. All Tri Clamp carbonation stones have the
following features:
1½ inch Tri Clamp fitting mounts on tank ferrule
¼ inch FNPT gas connection
¼ inch FNPT fitting
¾ inch x 6 inch 20mm diffusing stone
2 micron porosity
Stainless steel SS316 body
| Product Name: | Stainless Steel NPT Female Thread Carbonation Stone |
| Body Material: | SS304/SS316L |
| TC Size: | 1.5" |
| Connection Size | 1/4" NPT Female Thread |
| Carbonation Stem Length: | 4", 6" or other requirements |
| Ferrule Length: | 46mm |
| Size Option: | Could be customized in any sizes |
| Connection Available: | Weld, Clamp or Male/Female Thread |
| Packing Details: | Each Carbonation Stone is covered bubbles and anti-shake materials
within carton box for delivery. Plywood case is also available
depends on the quantity and the way of transport. |
