    Manual Control 1000L Small Microbrewery Equipment Micro Brewing Systems Eco Friendly

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 150 Set / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    Manual Control 1000L Small Microbrewery Equipment Micro Brewing Systems Eco Friendly

    1000L Completed Small Brewery Equipment For Craft Beer Brewing Process


    Applications area: Beer Bars, Hotels, Restaurants etc.

    Product features:

    1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

    2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

    3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

    4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

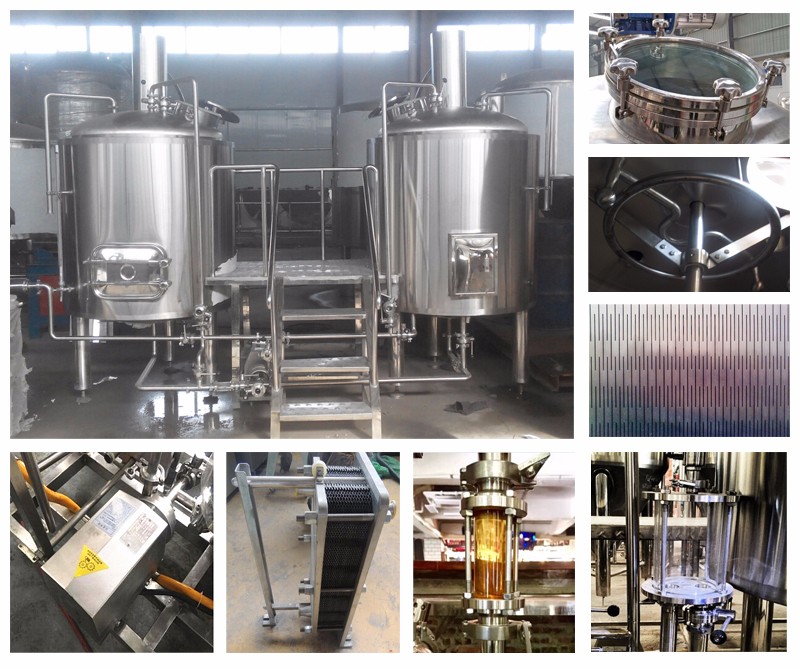

    Product Detail Description


    • Mash Lauter Tun with grist hydrator

    • Kettle Whirlpool Tank with heating jacketed

    • Grant Tank

    • Stainless steel Platform

    • Plate Heat Exchanger

    • Sanitary Wort Pump x2;

    • Wort Oxygenator;

    • Semi-Auto Control Panel;

    • Interior surface to finish pickled and passivated

    • Exterior surface to brushed, #4 finish

    Or

    •Interior surface to polished to RA≤0.22μm

    •Exterior surface adapts satin polish.


    Method of Heating Ways:

    • Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;

    • Electric: Use electric heaters in jacket to heat the medium in the jacket

    • Gas fired: Use gas burner at bottom to heat tank directly;


    Brewing Equipment Detail


    1000L small Beer Brewing System
    Brewing SystemComponentsCapacitySpecification
    Grinding SystemMiller300KG/HDouble Roller,Noise<60db
    Heating SystemBoiler100KG/HElectric,Gas,Oil,Coal Type/CE certification
    Brewhouse SystemMash / Lauter tun1000LMashing Process:Decoction.Infusion.Multi-step infusion
    Heating source:Steam,Electric,Gas
    SUS304/Red copper
    Brew Kettle/
    Whirlpool Tank
    1000L
    Hot Water Tank1500L
    Heat exchanger10SQMStainless steel plate
    Fermentation SystemFermentation Tank1000L/2000LTop manway /Side manway
    Drying hop port to brew IPA
    Dimple Plate Cooling jacket
    Carbonation port to fill CO2
    Yeast Adding Tank10LSUS304 Stainless Steel
    Cooling SystemGlycol Water tank3000lEquiped with PU level indicator
    Chiller10HPUL/CE certified electric elements,Copeland compressor
    Pump3T
    Cleaning SystemDisinfection Tank100LSUS304 full welded
    Alkali Tank100L
    Pump3T
    Control SystemControl CabinetManual/PLC/
    HMI
    Manual/Semi-automatic/Automatic
    OptionalAuger System
    Grain Case
    Grist Hydrator
    Piping flow panel for Brewhouse
    Brewhouse Separate PLC Controller
    Customized beer fermenter
    Technical ParameterPower:Based on volume
    Voltage:Cusomized
    Floor space:Customer Request

    Product Detail :
