Sanitary Conical Beer Fermenter With Cooling Dimple Jacket For Pub
/ Hotel / Brewery
Quick View
| 1. materials | sanitary stainless steel 304 /316 |
| 2. volume | range from 100L to 10,000L and even larger. |
| 3. jackets | cooling jacket and insulation layer filled with PU |
| 4. structure | dish top, conical bottom, breeding yeast, cylinder body. |
| 5. polishment | 3A mirror polish for interior layer and dish top, 2B satin polish
for exterior layer and conical bottom. |
| 6. transition of interior | adopt arc to make sure that there is no dead corner of sanitation. |
| 7. clamp | all clamp valve and fitting except for cold water inlet and outlet
are Tri-clamp |

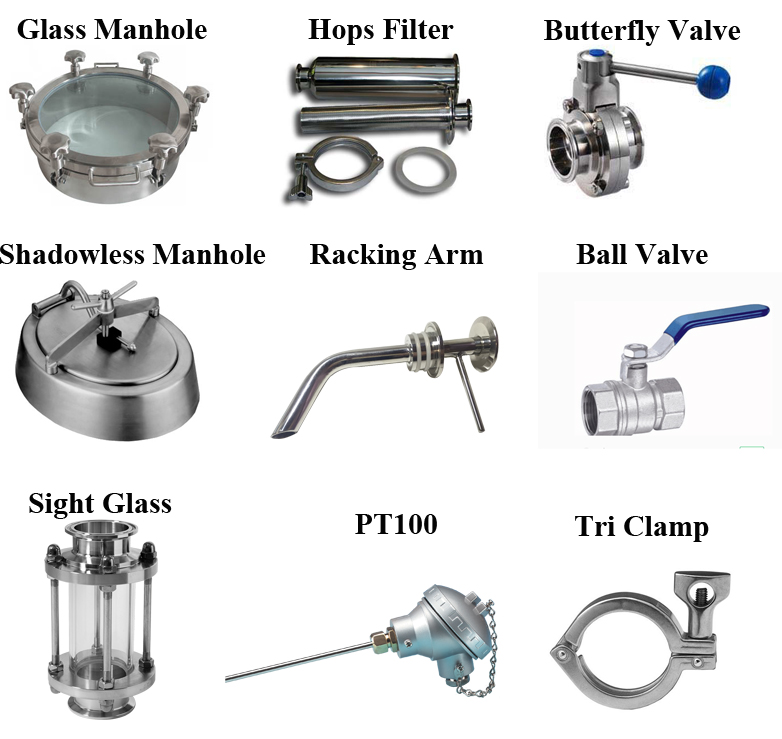

| 8. accessories | relief valve, lifting ears, CIP spraying ball with pipe, spare
hole, temperature gauge or thermometer probe,pressure gauge, etc. |
Product Description
Beer fermentation tank is used for the fermentation of beer and
wine storage, it is mainly composed of fermentation tank and seeds
tank, they are attached to each raw material (medium) modulation,
steaming, sterilization and cooling equipment, ventilation
adjustment and aseptic equipment, as well as the agitator and so
on. The fermentation tanks mainly undertake the product production
tasks. Seed tank is mainly to ensure that the necessary bacteria
fermentation tank culture dimension for the purpose.
Fermenting is the process during which the yeast transforms the
wort into beer.Lagerings takes place after fermenting and is the
time given to the beer to stabilize and age after fermenting.
Fermenter Configuration
Design pressure 45 psi (3bar); working pressure 15psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6~0.8, hygiene
surface
60 / 70 degree cone bottom, other angles can be specified during
the design process
Combined drain extensions and beer port in cone are standard
25% headspace, unless a different volume is requested
Top manway or side manway door
Dual zone in sidewall and cone dimple cooling jacket with glycol
inlet and outlet
Polyurethane insulation thickness 50mm - 100mm for cooling jacket
on side and bottom
Fully welded exterior shell
Non welding CIP arm and rotating 360 degree reach spray ball
Solenoid relief valve, pressure relief valve (safe valve) are
standard
Pressure gauge
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Carbonation port is available for special request (stone not
included)
Ladder hooks is available for special request
Dry hop ports and/or hop bag hooks in any fermenter of any size for
special request
| Volume | 300L | 400L | 500L | 600L | 800L | 1000L | 1500L | 2000L | 3000L |
| Body diameter(mm) | Φ800 | Φ800 | Φ900 | Φ1000 | Φ1000 | Φ1000 | Φ1200 | Φ1300 | Φ1600 |
| Body height(mm) | 600 | 800 | 800 | 800 | 1000 | 1220 | 1220 | 1500 | 1500 |
| Motor power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 3 |
| Stirring speed(rpm) | 36r/min |
| Working pressure | ≤0.1Mpa |
| Working temperature | <100 |
| Accessories | Sanitary manhole, cleaning ballsafety valvepressure gauge |

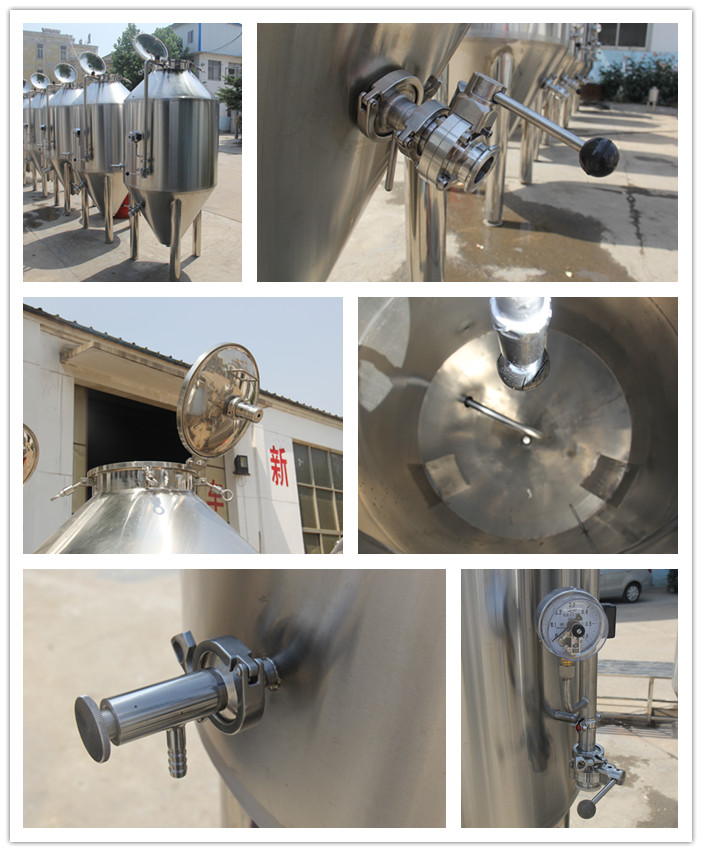

Product Details
