304 Stainless Steel 10BBL Cold Liquor Tank Of Beer Equipment With Top Manway And Dimple Plate Jacket

To make the best beer possible, the beer brewhouse equipment is the key. On the basis of absorbing European

advanced and experienced beer machinery technology, Our Brew house can fulfill various brewing technologies, variable tastes or specific capacities.

10BBL | 20BBL | 30BBL | 40BBL | 50BBL brewhouse sizes are produced standardly, or even larger for customers. The Brew house can be heated with Steam, Gas fired, Electric etc. The system composed of Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four tanks can be combined together to meet different requirement of brew system.

All the tanks certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

We can custom fabricate any tank to meet your brewery’s space and height restrictions.

Main Tank:

1. mash lauter tun, kettle whirlpool tun, hot water tank

2. mash tun, lauter tun, kettle whirlpool tun

Standard design: 5BBL, 7BBL, 10BBL, 15BBL, 20BBL, 30BBL or customization.

Details:

Mash lauter tun: Grist Hydrator, racking machinery(system), spend grain outdoor and Sieve plate(False Bottom)

Lauter tun: ranking machine, spend grains outdoor

Kettle tun(Hot water tank): Choose different ways of heating

Whirlpool tun

Work platform

Grant/piping system/pump(frequency control)/one or two stage heat exchanger/liquor

blending system/Wort aeration device/control box/Temperature controller/ manual valves

Optional: steam condensing pipe/spindle station

Technology Parameters

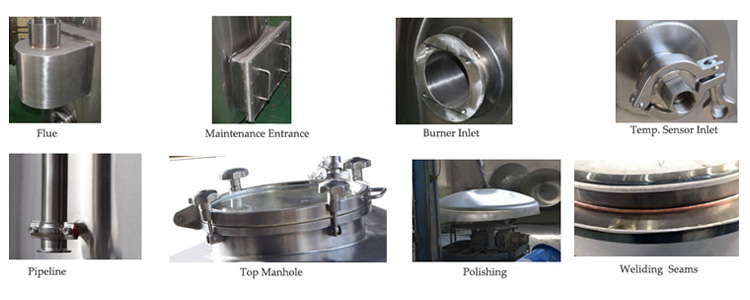

The Inner thickness is 3.0mm, the exteral jacket thickness is 2.0mm, So our tanks have a good warm-keeping effect. Cylinder (Oval, SUS304), thickness: 3.0mm, Insulation layer: Rock wall-thickness: 80mm. Equipped with: Blender; Power: 1.5KW; Speed ratio: 1:43, Wort pipe and the washing pipe is separated device. Top manhole door: Diameter: 400mm, atmospheric pressure manhole design. Liquid level display device: sight glass & liquid level gauge, Equipped Sparging device for cleaning. Outsourcing surface: Weld polishing processing. As the polishing precision, it can up to Ra0.4µm. The surface is polished for 3 times.Cylinder (Oval, SUS304),thickness is 3.0mm. Insulation layer, Rock wall-thickness is 80mm.

Used for cool water for use in the wort heat exchanger.

Standard Features:

side or top manway

sight tube with calibration strip

CIP sprayball and downtube

outlet w/ stainless steel butterfly valve

water inlet fitting

over-flow tube routed under tank

dimple plate glycol cooling jacket

thermowell with strain relief

coned top and bottom

stainless steel legs w/ height adjusters & pads

2" insulation

clad in stainless steel;

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
