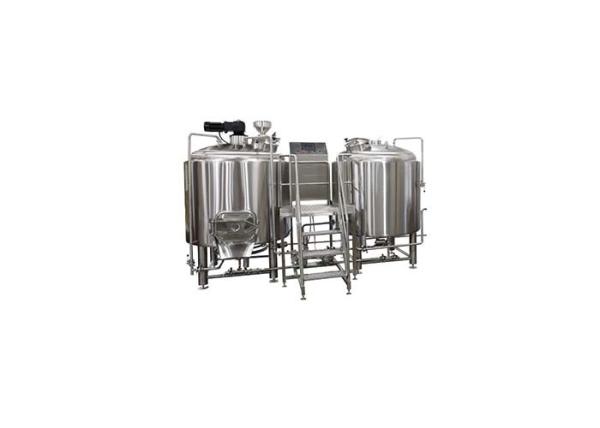

    Steam Heating 100L Pilot Brewing Equipment With Glycol Cooling System ISO / CE

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 150 Set / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    Steam Heating 100L Pilot Brewing Equipment With Glycol Cooling System ISO / CE

    100L Small Pilot Brewing Equipment Heated By Steam With Glycol Cooling System


    Product Description


    30l 50l 100l small Brewhouse Introduction


    Mash/lauter tank: used for mashingin, lauter, recirculation, and sparging.
    *Stainless steel material 304/316
    *Exterior thickness: 1.5~2.0mm
    *Interior thickness:2.5mm~3.0mm
    *Flange&dish head
    *Polyurethane 80~100mm
    *Rotary cleaning ball
    *Recirculation with sight glass
    *Coned bottom
    *Raker knife with variable speed drive
    *False bottom
    *Ring of sparging
    *Temperature senser
    *Separate mash tun, lauter tank available


    Kettle/whirlpool tank:used for boiling and whirlpool of the wort
    *Stainless steel material 304/316
    *Exterior thickness: 1.5~2.0mm
    *Interior thickness:2.5mm~3.0mm
    *Stainless steel heating jacket, both on the bottom and around the side
    *Flange&dish head
    *Spray cleaning ball
    *Temperature senser
    *Equip with agitator
    *Condenser device
    *Separate kettle, whirlpool tank

    Optional:
    3-vessel: mash tun-lauter tank-kettle/whirlpool tank
    mash/kettle tank-lauter tank-whirlpool tank(combination type optional)
    4-vessel: mash tun-lauter tank-kettle-whirlpool tank

    Hot water tank, Screw conveyer, Grist case optional
    Process: mirro polishing, pure argon gas protecting welding, double face forming
    Panel: Mirro/wire-drawing/2B optional


    Fermenter tank and Bright Tanks Introduction


    Specializing in the production of beer brewery system micro brewery equipment

    Standard features of the fermenters/unitanks/CCVs:

    Conical bottom, cylindrical top, stainless steel 304 double walled jacket tanks

    Bottom cone 60-70degree, allow the yeast to flow towards the cone's apex

    Compression resistance design, design pressure 0.3Mpa, working pressure 0.1Mpa

    Dimple Plate Jacket for cooling, Stainless steel cooling belt or Miller board cover the body & Cone bottom
    to efficiency cooling all the parts

    Both the tank and the jacket will have 48 hours pressure test&inspection

    Stainless steel legs(3 or 4), with screw assembly to adjust leg height

    Dry hops adding port, carbonization port,racking arms optional

    Stainless steel ladders for large tanks

    All relative valves: pressure regulating valve, safety valve, sampling valve, drainage valve food and sanitary grade stainless steel 304 material

    PU(Polyurethane)Foam Insulation, Cover Body & Cone Bottom to Keep Thermal

    Single tank, single control

    Top or side manhole


    Detail of Main Configuration


    Main items

    Main machine

    Malt milling system

    Double rollers malt miller machine

    Mash system

    Mash tun/kettle boiler, lauter tun/whirlpool tun, wort pump, Mirror polishing
    Mechanical
    agitation: Stirring moter adopts variable frequency stepless speed control, improve
    wort preparation time.

    Fermenting system

    Fermentation tank, inner tank adopts international standard food grade SUS.304
    All welding us double-sided welding argon gas protection, double-sided forming can
    improve the weld ability if under pressure.
    Mirror polishing

    Heating system

    Electric heating/ steam heating/ direct fire heating

    Control system

    Control cabinet, touch screen. Simens /LG PLC control

    Chiller system

    Ice water tank, cold water tank and pumps, plate heat exchanger, chiller

    Filter system
    (Opional)

    Membrane filtration or plate filter machine or Diatomite filter

    Storage system
    (Customized)

    Beer bright tank, beer storage tank

    Cleaning system

    CIP cleaning system, include alkali tank and disinfection tank, cleaning pump.
    Cleaning ball: internal comprehensive cleaning, improve the quality of internal
    cleaning.

    Filling system
    (Opional)

    Manual and automatic bottle filling line, keg filler and washer machine
