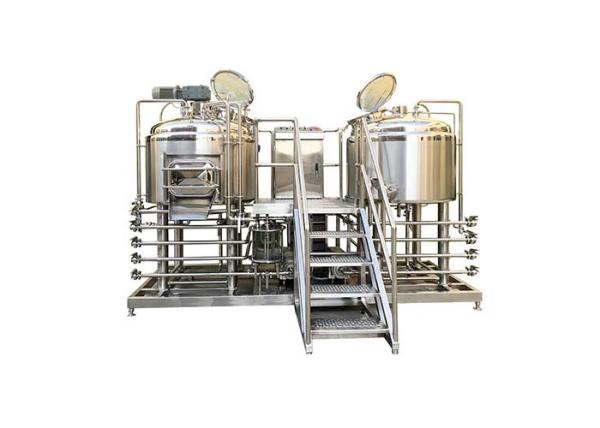

2HL Food Grade SS304 Fabrication For Pilot Brewing Equipment With 50mm PU Insulation

2HL Pilot Brewing Equipment Purpose

Purpose – Imitation of performance of larger brewing systems, in order to perform tests, demonstrations and to serve educational purposes or occasionally hobbyists.

Batch Size – For the time being, 50 liter to 235 liter (2 bbl).

2HL Pilot Brewing Equipment Main Configuration

Brew House Design

Steam heated three vessels brew house.

The prototype design has a Mash Kettle with a variable speed agitator and steam jackets regulated by temperature controller. Dedicated Mash Pump transfers mash into a Lauter Tun. Single runoff outlet below the false bottom. Sparging through a stationary spray ball. Variable speed rakes and knives.Brew Kettle with multiple steam jackets for controlled and rolling boil. Built-in Whirlpool to separate wort from trub. Single stage Heat Exchanger. Two- or four vessels design is also possible.

Configuration – The brew house comes with at least one cylindroconical temperature controlled fermenter (unitank) and one dish-to-dish temperature controlled bright/lagering tank. More fermenters and bright tanks can be added. Modular design with frames on wheels.

Automation – The system is automated from heating of mashing water to whirlpool. The heart of the automation is a computer with a touch screen display. PT100 sensors, ultrasonic level sensor, electronic flow meter, pressure regulated pneumatic butterfly valve help control temperature levels, lautering, sparging. Manual and semi-automatic design also available.

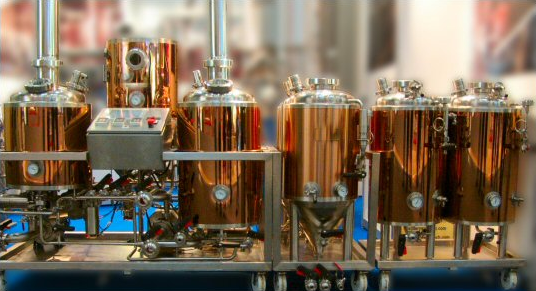

Aesthetic Design – Vessels are copper clad, arranged in a pleasing manner with pumps, process piping, control panel.

Brewing System Description

Fermentation Tank

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
