300 Gallon Stainless Steel Fermenter Wine Jacket Storage For Brewing Equipment

300 Gallon Stainless Steel Wine Jacket Storage Conical Beer Fermenter Vessel

1. Mash system
Mash/Lauter tun
Boiling/whirlpool tun
Hot water tank (optional)
saccharification combination piping
plate heating exchanger
Wort pump
Plate heat exchanger
single control panel for mash system (optional)
hops filter(optional)

2. Fermentation system
Fermentation tank(fermenter)
bright beer tank(storage tank)
yeast adding tank

3. Cooling system
glycol tank
refrigeration unit

4. Control panel
PLC, Siemens

5. Accessories
T-Type thread changing diameterButterfly rubber seals

Insulation/heat preservation material
Saccharification combination pipeline
Pipeline & valve VLV
Wort measuring meter
Rake
Food grade oxygen filling pipe
Refrigerant pipelines keep warm tube
Mechanical type safety valve
An oil pressure gauge
Alkali tank, sterilization tank, washing pump (VFD control speed, ABB MOTOR), moving vehicle
Semi-automatic manual control panel or PLC touching screen control panel

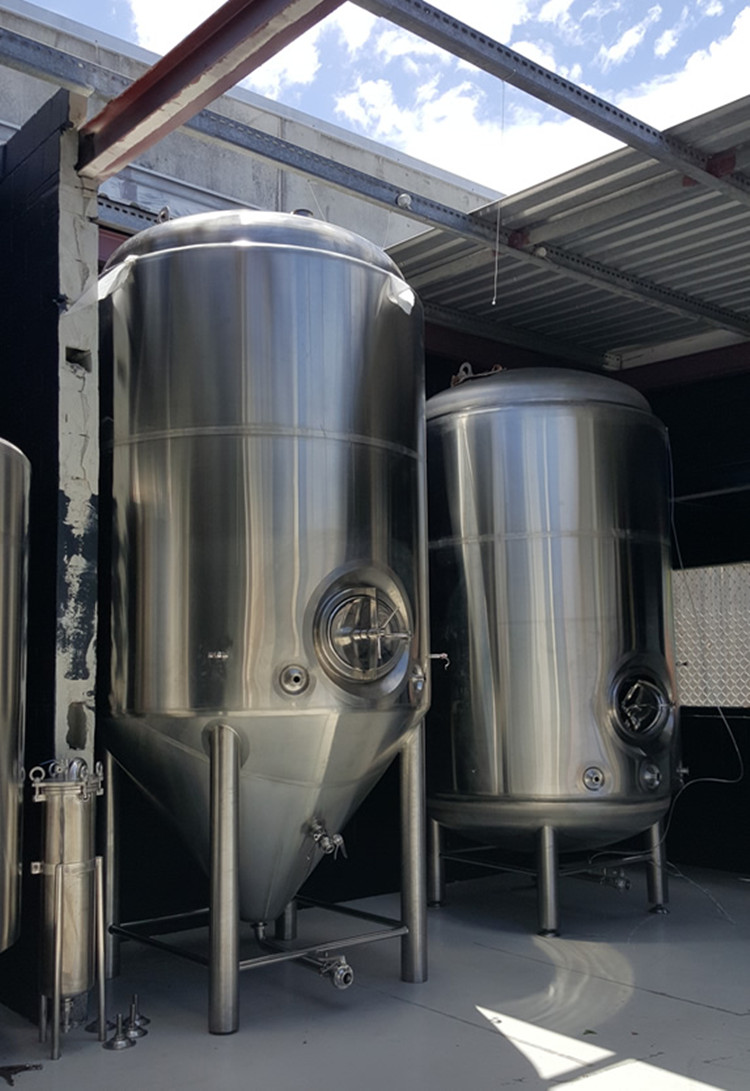

Beer Fermentation Vessel
1. Application
This Fermentation vessel is widely applied in beer production line.

2.Constructure and advantage
1) The vessel body has interlayer and cooling jacket. The vessel body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the vessel has got mirror polishing with finish Ra≤0.4μm.

2) It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

3) It is equipped with devices including air respirator, cleaning ball, sanitation inlet, viewing mirror, and viewing lamp. The fermentation process of beer, fine chemical engineering and biological products is aseptic and untainted.

4) The equipment adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.

The parts that contact materials are all made of stainless steel SUS304 or SUS316L. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard.

Capacity	300L-20,000L
Application	Winery and brewery storage and fermentation
Material	SUS304 or SUS316L
Construction	Dimple pad cooling jacket in the vessel body and conical bottom, efficiently cooling the vessel in all the parts Cooling exchanging areas are available in different design Conical bottom in 60 degree(70 or 90, due to different design) , it is design for the yeast fermentation processing Temperature insulation: PU foam
Socket	Manhole, CIP hole, temperature probe, sampling socket, etc

Mashing system	capacity	100L	200L	300L	400L	500L	1000L	2000L	5000L
	Output/batch	100L	200L	300L	400L	500L	1000L	2000L	5000L
	Brew/week	6~10	6~10	6~10	6~10	6~10	6~10	6~10	6~10
	Output/week	600~ 1000L	1200~ 2000L	1800~ 3000L	2400~ 4000L	3000L~ 5000L	6000~ 10000L	12000~ 20000L	30000~ 50000L
6pcs fermentation tank	Output/batch	600L	1200L	1800L	2400L	3000L	6000L	12000L	30000L
	Fermentation time	6-8 days	6-8 days	6-8 days	6-8 days	6-8 days	6-8 days	6-8 days	6-8 days
	Output/month	1800-2400L	3600- 4800L	5400-7200L	7200-9600L	9000-12000L	18000-24000L	36000-48000L	90000-120000L
