    Stainless Steel Conical Beer Fermenter In Beverage Processing Machinery

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDL
    Certification : ISO , CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 - 60 Days
    • Product Details
    • Company Profile

    Stainless Steel Conical Beer Fermenter In Beverage Processing Machinery

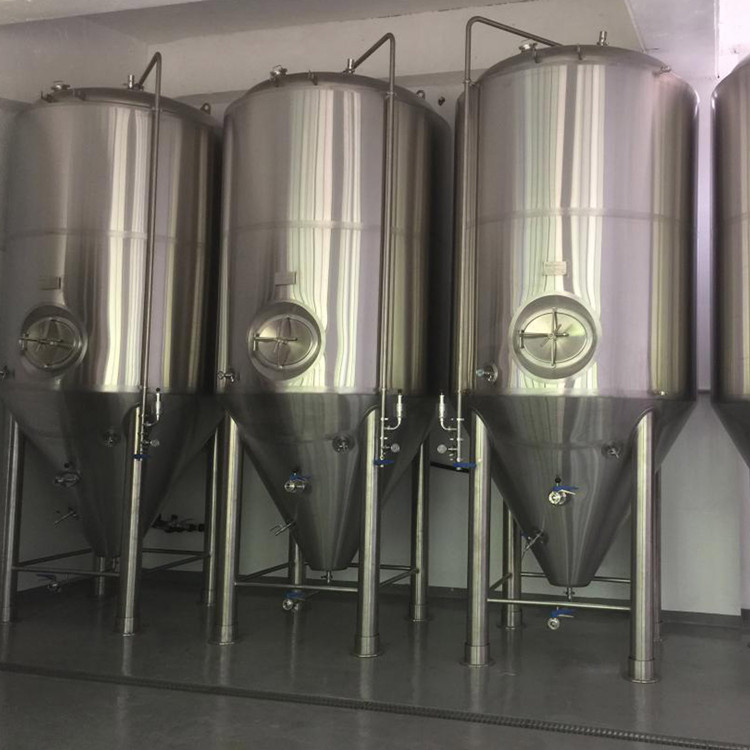

    Stainless Steel Conical Beer Fermenter in Beverage Processing Machinery

    Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a

    Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,

    with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for

    Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,

    are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet

    your brewery’s space and height restrictions.


    NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!


    Standard Features:

    • Dual zone dimple cooling jackets (3 or more on larger tanks)

    • Interior shell: 304 stainless steel, thickness 3mm /11 gauge

    • Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge

    • Exterior shell: 304 stainless steel, thickness 2mm /14 gauge

    • 2” Polyurethane insulation

    • Interior surface to finish pickled and passivated

    • Exterior surface to brushed, #4 finish

    • 580x480mm Side manway, shadowless

    • Dry hop inlet at top;

    • Accessories:

    Sample Valve x1;

    Pressure relief/vacuum valve x1;

    Temp. sensor / thermometer x1;

    Rotating racking arm with butterfly valve x1;

    Bottom outlet with butterfly valve x1;

    Spraying Ball with down tube x1;

    Stainless pipe legs with adjustable footpads x4;


    CapacityCylinder(ODxH)OAHInner Thickness
    7BBL1000 x 1250mm2530mm3mm
    10BBL1150 x 1250mm2670mm3mm
    15BBL1250 x 1680mm3250mm3mm
    20BBL1400 x 1700mm3400mm3mm
    30BBL1650 x 1850mm3740mm3mm
    40BBL1750 x 2050mm4040mm3mm
    50BBL1750 x 2750mm4770mm3mm
    60BBL1150 x 1250mm2670mm3mm
    80BBL2100 x 2900mm5300mm3mm
    100BBL2200 x 3350mm5850mm3mm
