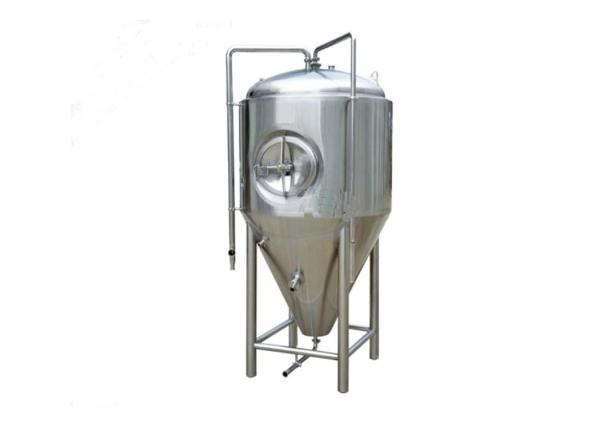

60BBL Stainless Steel Conical Beer Fermenter Jacketed Beer Brewing Equipment

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a
Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,
with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for
Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,
are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet
your brewery’s space and height restrictions.

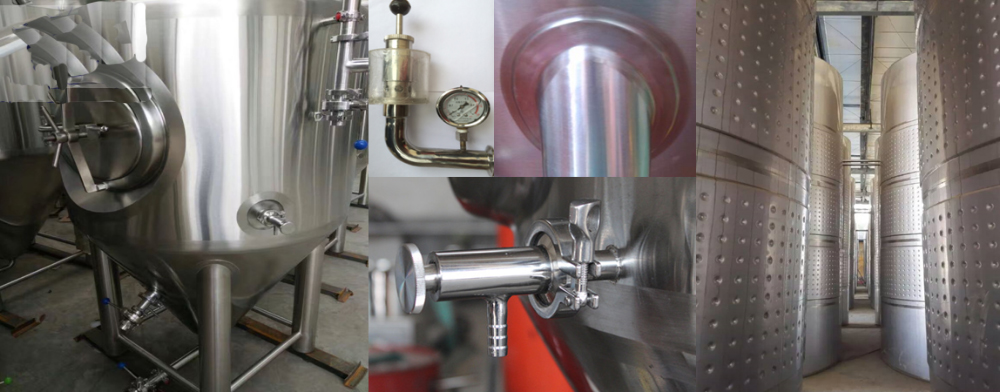

Dished head and 60 degree cone bottom
CO2 blow-off arm with butterfly valve
Sanitary top mounted pressure manway
CIP arm with 360° coverage CIP spraying ball
PT100, solenoid valve, single tank single control
Fermentation heat exchanger area: 2.8㎡
Content gauge (Stailess stee shell and glass tube with liquid level valve)
Exterior welding seams brushed sand belt, welding points to be acid passivated.
3 heavy duty stainless steel legs with leveling footpads
All inwall polishing, acid picking and passivation.

Dished head and 60degree cone bottom
CO2 blow-off arm with butterfly valves
Sanitary top mounted pressure manway
CIP arm with 360° coverage CIP spraying ball
PT100, solenoid valve, single tank single control
Fermentation heat exchanger area: 2.8㎡
content gauge (Stailess stee shell and glass tube with liquid level valve)
Exterior welding seams brushed sand belt, welding points to be acid passivated.
3 heavy duty stainless steel legs with leveling footpads
All inwall polishing, acid picking and passivation.

Application:
The whole set equipment is made of austenitic stainless steel. The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. Widly used in brewery, bar, hotel, amily etc.

The advantages of our beer equipment:
1. Roughness is less than 0.22μm
2. Without any dead corner
3. Discharge with rotation
4. Multi-stage cooling jacket can save more energy
5. Various heating methods (electric heating, gas heating, steam heating)
6. Filter plate (unique design with back taper)
7. Churn (manual, semi-automatic, top stirrer and bottom stirrer)
8. We have sufficient spot goods, conventional criteria beer equipment and we can deliver the goods within 3 days after signing the contract and remittance.
9. Our equipment is mainly used in brewing of beer, stout and rum. Besides, the product made by our equipment is tasty and fragrant.

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
