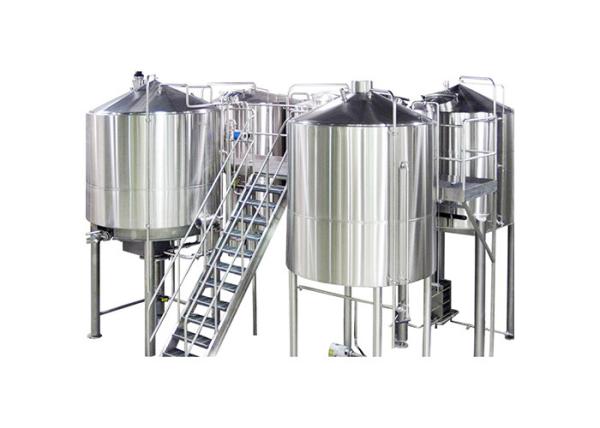

    Automatic Control Industrial Beer Brewing Equipment 1500L Output / Brew

    Ask Lasest Price
    Brand Name : YDL
    Model Number : YDLEH
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 200 sets/year
    Delivery Time : 30-60 days
    • Product Details
    • Company Profile

    Automatic Control Industrial Beer Brewing Equipment 1500L Output / Brew

    1500L Automatic Control Large Brewing Equipment for Craft Beer Making


    The complete microbrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned, but larger than breweries for the restaurant, bars etc., as it distributes beer to local restaurants and bars, parties etc. To run a microbrewery and get a suitable margin from this kind of business model, we suggest starting from 1000L/brew capacity minimum that concerning both the budget limitation and expanding capacity in future. Also, 2000L-3000L beer equipment is common to see for a little larger business. The Complete microbrewery is more professionally functional and concerns more details to brew in a more smart way, trying to decrease the factors that may affect the brewing speed or beer flavors.

    Quick Overview


    Output/Brew1500L
    Brew/day1-2
    Output/Week9000L-18000L/week based on different configuration
    Electric Supply3phase/380(220, 415,440…)v/50 (60)Hz
    Heating SourceSteam (Optional Direct fire/electric)
    Area Request>150M2
    Brewmaster1
    Mashing methodDecoction,infusion,multi-step infusion

    Main Configuration


    Main brewing systemComponentsMain specification








    Brewhouse unit



    Mash tun
    1500L
    25% headspace,
    Steam heating with insulation
    Wort agitator&motor,
    Hydrator
    CIP
    Lauter tun25BBL
    25% headspace,
    False bottom,
    Rake&motor,
    Spent grain outlet
    CIP, sight glass.
    Kettle/Whirlpool tun1500L
    30% headspace,
    Steam heating with insulation
    Steam condenser,
    Wort outlet and trub outlet,
    Tangential inlet.

    Hot Liquor Tank
    1500L
    15% headspace,
    Steam heating with insulation
    CIP.
    Level Gauge
    Hot water recycling port
    Wort pump10T/hr, Sanitary
    Mash pump10T/hr, Sanitary
    Hot liquor pump10T/hr, Sanitary
    Plate heat exchanger30m2
    Two stages
    Connected with wort aeration device
    Disassemble
    Work platformDisassemble,
    Adjustable

    OPTIONAL
    Wort grant
    Hopback
    Hopper
    Pneumatic valve
    Wort flow meter
    Sink
    Sterile air compressor
    Fermentation unitFermentation tank1500L/3000L
    25% headspace,
    Jacketed and insulated
    Conical bottom,
    Pressure valve, relief valve
    CO2 relief valve
    Coolant inlet and outlet
    Sample valve
    Side manway
    Top, Dry Hopping Port
    CIP connections
    Wort inlet and yeast outlet
    Racking Arm
    Temperature and pressure gauges
    Maturation/Storage (OPTIONAL)Bright beer tank1500L/3000L
    20% headspace,
    Jacketed and insulated
    Dished head&bottom
    Pressure valve, relief valve
    Site Glass level
    Carbonation stone assembly
    Sample valve
    Side manway
    Fill/drainage port
    CIP connections
    Temperature and pressure gauges
    Jacketed and single wall tanks






    Glycol cooling system
    Glycol cooling tankThermowell
    Top manway
    CIP arm and spray ball 360 degrees of coverage
    Thermowell

    Cold liquor tank (OPTIONAL)
    Top manway
    CIP arm and spray ball 360 degrees of coverage
    Visual level sight glass
    Cooling jackets
    ChillerSecond generation
    Freon R410A, R404A
    Glycol water pump and piping


    Controlling unit

    Brewhouse control panel
    Temperature monitoring& controlling
    The pump on/off control
    VFD control
    Cellar control panelTemperature monitoring& controlling
    More controllers reversing for expansion available


    Cleaning unit
    Alkali tank300L Steam heating
    Sterile tank300L
    Pump and piping


    Optional items: Beer filter, Keg filling system, Bottle filling system
    Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
    Customized requirement acceptable


    Contact us immediately to get the latest specification and price of 1500L Automatic Control Large Brewing Equipment for Craft Beer Making
