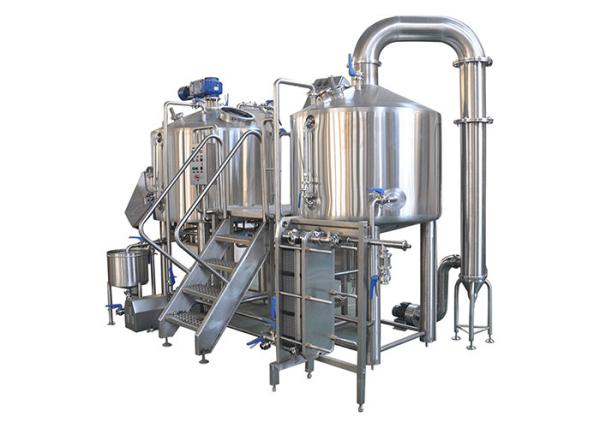

500L Steam heating 2 Vessel Brewhouse with Mash Lauter Tun Boil kettle Whirlpool Tun

Brewhouse equipment is designed to produce high-quality wort efficiently. With the malt quality improving, Brewhouse equipment is designed to produce high-quality wort efficiently. With the malt quality improving, the brewmaster does not need to mash with a strict and complex method. So, infusion has been able to help the brewmaster to get expected wort for fermenting to get various beers like stout, IPA, porter, Pilsner etc.. In this case, two vessels stainless steel brewhouse equipment is very commonly used in microbrewery below 20 HL. The brewmaster can brew 1-2 batches within 12 hours by two brewing vessel. Besides, if desired, the brewhouse can be customized to copper, brass or mirror exterior finish, then placed behind a glass partition that allows visitors to observe the process of making wort.

Quick Overview

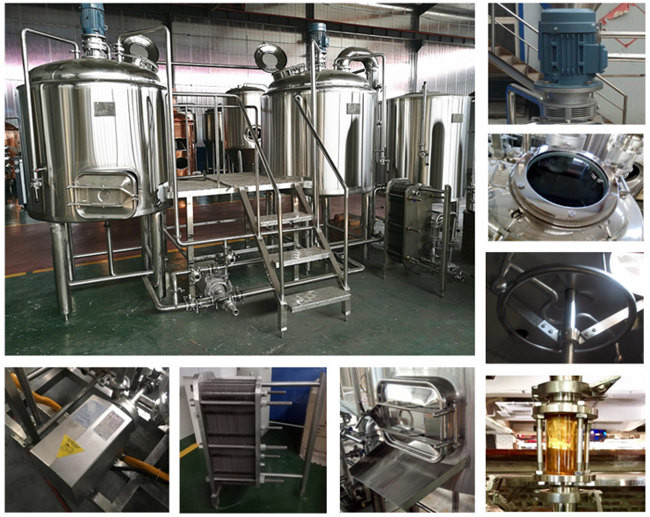

Main Configuration

A. 500L mash/lauter tun
- 3mm Interior Shell and 2mm exterior Shell
- Acid washing&passivating the Interior Finish to 0.2~0.4 μm
- 80mm rock wool for insulation
- Stainless steel/glass manway
- CIP spraying ball and sparging ring
- Side mounted grain outdoor with grain chute
- Grain rake and scraper blade with VFD controlled motor& turbine reducer
- False Bottom/Filter

B. 500L kettle/whirlpool tun
-3mm Interior Shell and 2mm exterior Shell
-Acid washing&passivating the Interior Finish to 0.2~0.4 μm
-80mm rock wool for insulation
-Stainless steel/glass manway
-CIP spraying ball
-Tangential whirlpool inlet

C. Other auxiliary equipment
-50L Glass Grant
-3T Sanitary wort and hot liquor pump
-Manifold for liquid flow easily controlling
-Completely stainless steel work platform
-6m2 Two stages or single stage plate heat exchanger
-Sanitary wort aeration mounted with stone
- 10L Sanitary yeast feeder
-PID control panel

According to the client’s needs, various combinations of brewhouse can be offered as followings:

2 Vessel Brewhouse

• Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
• Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
• Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank

3 Vessel Brewhouse

• Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
• Mash (kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun

4 Vessel Brewhouses

• Mash (kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool Tun

Heating Methods

• Steam Heating: dimple plate jacket with inlet/outlet fittings for steam heat transfer;
• Electrical Heating: use electric heaters to heat the medium in the jacket
• Gas-fired Heating: use the gas burner at the bottom to heat tank directly

Contact us immediately to get latest specification and price of 500L Steam heating 2 Vessel Brewhouse with Mash Lauter Tun Boil kettle Whirlpool Tun
