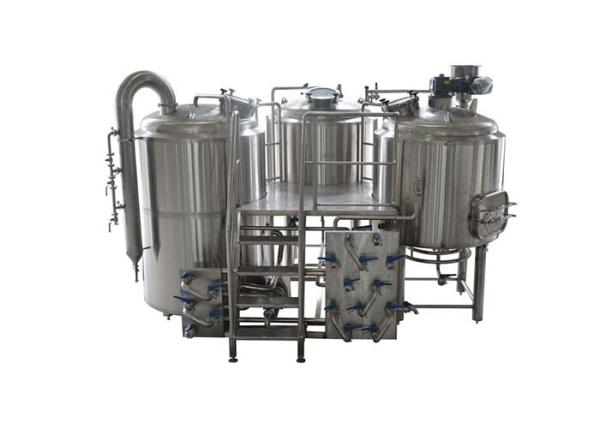

10BBL 3 Vessel Brewhouse With Sanitary Stainless Steel Material And Steam Heated

Our brewhouse is on the basis of absorbing European advanced and experienced beer machinary technology, it can fulfill various brewing technologies, variable tastes or specific capacities.

10BBL/20BBL/30BBL/40BBL/50BBL brewhouse is standard, larger or unique brewhouse also can be customized by client`s needs. the system is composed of Mash Tun/Lauter Tun/ Brew kettle/Whirlpool Tank etc. it can be headed by steam or electricity or gas fire.

The main tanks can be combined to 2 vessels/3 vessels / 4 vessels brewhouse to meet different requirements of brewing technology.

All our tanks are fabricated by certified high quality stainless steel with 100% TIG welded joints and seams, sanitary interior polish, Tri-clamp connections and designed for up to 14.7PSI and tested at30PSI. we can design any tank to meet your brewery`s space and height restrictions.

According t o clients` needs, various combination of brewhouse can be offered as followings.

2 Vessels Brewhouse

Mash/Lauter Tun + Boil Kettle/Whirlpool Tun

Mash/Lauter Tun/Hot Liquor Tank combi Vessel + Boil Kettle/Whirlpool Tun

Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank

3 Vessels Brewhouse

Mash/Lauter Tun + Boil Kettle + Whirlpool Tun

Mash Tun + Lauter Tun + Boil Kettle/whirlpool Tun

4 Vessels Brewhouse

Mash Tun + Lauter Tun + Boil Kettle + Whirlpool Tun

System Specs:

Mash Tun
Effective volume:10BBL
Milled plate false bottom
Rake motor: 1.5 Kw Rake Motor, variable speed with reverse
Grain out Paddles: Integral to the rake, activate in reverse direction
Dedicated sanitary centrifugal pump, variable speed control
Glass Grant and underlet capability
Inner container: SUS304,thickness 3mm, 2B finished
Outer Shell: SU304, thickness 2mm, brushed finish
Insulation material: polyurethane, thickness: 80mm
Grain out side mandoor with removable chute
Vorlauf, Sparge Ring, strike water fill port
Oversized glass window mandoor with interior light
Necessary fittings and valves, pipeline, dual CIP balls

Kettle
Effective volume:10BBL. 20% headspace
Dedicated sanitary centrifugal pump, variable speed control
Inner container: SUS304, thickness 3mm, 2B finished
Outer shell: SU304, thickness 2mm, brushed finish
Insulation Material: polyurethane, thickness: 80mm / rock wool
Heating method: Direct fire, fully modulating Midco Economite 4400DS HTD forced air burner.
Oversized glass window manway with interior light
Steam Vent: Removable condensing steam vent
Necessary fittings and valves, pipeline, CIP wash ball
Rotatable racking arm

Whirlpool Tun
Effective volume: 10BBL. 20% headspace
Dedicated sanitary centrifugal pump, variable speed control
Inner container: SUS304, thickness 3mm, 2B finished
Outer shell: SU304, thickness 2mm, brushed finish
Insulation Material: polyurethane, thickness: 80mm / rock wool
Heating method: Direct fire, fully modulating Midco Economite 4400DS HTD forced air burner.
Oversized glass window manway with interior light
Steam Vent: Removable condensing steam vent
Necessary fittings and valves, pipeline, CIP wash ball
Rotatable racking arm


Working Platform / Heat Exchanger
Large working platform
All stainless steel anti slip design
Built in work shelf
Spray down hose location
Full handrails
Heat Exchanger: SU304 plate and frame 4 sq meter surface area

Control Panel
Centralized control panel
Temperature displays for all critical process
VFD controls for Pumps and rake
Burner controls
Lighting controls
Integrated circuit breakers

Utility Connections
Electricity: 220VAC/208VAC 3-Phase for mash rake, wort pumps, and main control panel. 30 Amp breaker required.
Water: 1" NPT female inlets at Brew House for hot and cold water sources.
Gas Pipe Size: Minimum 3/4", larger sizes may be required due to distance from meter and pressure drop.
Gas pressure required: 7" W.C (water column) minimum 14" W.C. maximum at burner location.

Photos:

Accessories:

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
