Stainless Steel SUS304 Sanitary Manhole Beer Brew Auxiliary Brewing
Equipment
Quick Details
1. Products: Manhole
2. Size: 430*330mm, 530*430mm
3. type: Ellipse
4. Material: Sanitary Stainless Steel 304
5. Function: Seal With Press
6. Over 10years strong factory
7. Customized service
Feature
| Product Name: | sanitary 304l polished sanitary stainless steel manhole |
| Material: | 1.4404/1.4301, SS304/SS316L |
| Gasket: | EPDM/NBR/SILICION/FPM FDA177.1600 |
| Internal Surface : | Ra0.8μm~0.5μm |
| Outside Surface: | Stain or mirror polish |
| Availably size: | 200~ 600mm |
| Height Option: | 100,120,150mm |
| Pressure: | 2~5 bar;Can be 10 bar if customer requires |
| Sight glass option: | Union type sight glass,flange type sight glass |
| Application Scope: | Widely used for pressure vessel in the fields of
food,beverage,chemical,etc |
| Design: | With pressure; Outside opening manhole cover; plastic handwheel or
stainless steel handwheel. |
| Packaging Details: | Bubble pack for each. Outside packing are carton or plywood cases.
Or as per the request of customers. |
Main Date
| Available Material | SS304,SS304L SS316,SS316L |
| Available Standard | DIN, ISO,IDF,3A,SMS, RJT, CIP, AS, BS |
| Application | Food and Beverage, Pharmaceutical, General Industry, etc. |
| Certification | ISO9001, SGS, TUV, EAC |
| Surface treatment | Polish, Pickling, Electrochemical Polishing |
| Available Height | 100mm~300mm |
| Available Size | 200mm~800mm |
| Flow Media | Water, Beverage, Pharmacy, Milk, Beer, Juice, Oil |
| Fluid Temperature | Normal Temperature |
| Fluid pressure | Medium Pressure |

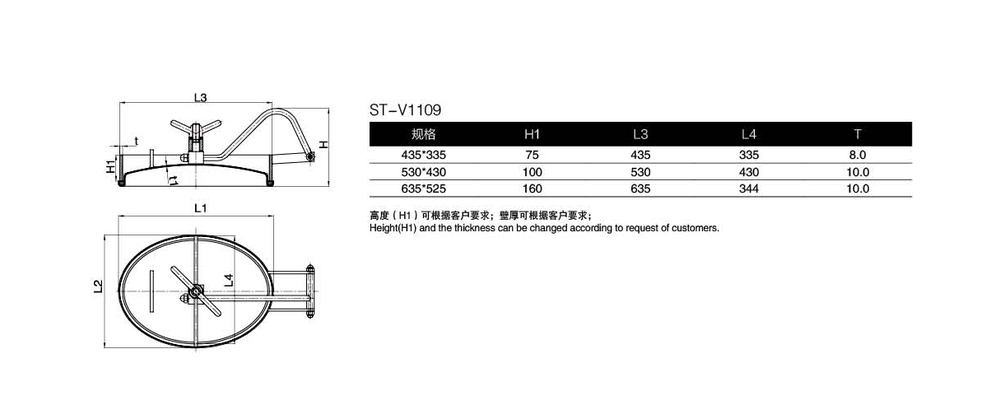

Drawings
Description
1. Name: Stainless Steel Sanitary Elliptic type manhole/manway
cover with pressure
2. Size: from 1/2" to 2" or according to your size.
3. Standards: DIN,3A,SMS,ISO.
4. Material: ,AISI304,AISI316L,
5. Finish: Mirror polish, Semi bright
6. Connection: Welded, Clamped
7. Packaging: Shrink packed – carton -plywood case
8. Sample: Sample and freight cost can be negotiable
9. Applications: Extractor products parts,Pharmacy, beer, food,
dairy, brewing, beverage, water treatment and chemical industry
Application
1. Food industry
2.Exhuast part
3.Ornamental
Performance features
Stainless steel people hole is installed in storage tank top of
security emergency ventilation device, usually and fire players,
and machinery breathing valve supporting using, both can avoid due
to accident causes caused tank within sharp Super pressure or
vacuum Shi, damaged storage tank and occurred accident, and has up
to security resistance fire role, is protection storage tank of
security device, special applies Yu storage material to nitrogen
capped of vaulted atmospheric tank. Constant pressure constant
pressure inhalation, emissions, opening and closing with flexible,
secure, fire resistant, compact, good sealing performance,
security, reliability and so on.Stainless steel manholes 304,
material of steel is generally used as a raw material to produce.
Stainless steel manholesManhole emergency pressure relief hole,
explosion-proof fire breathing manhole, tank top manhole, tank,
such as core-wall manhole and manhole.

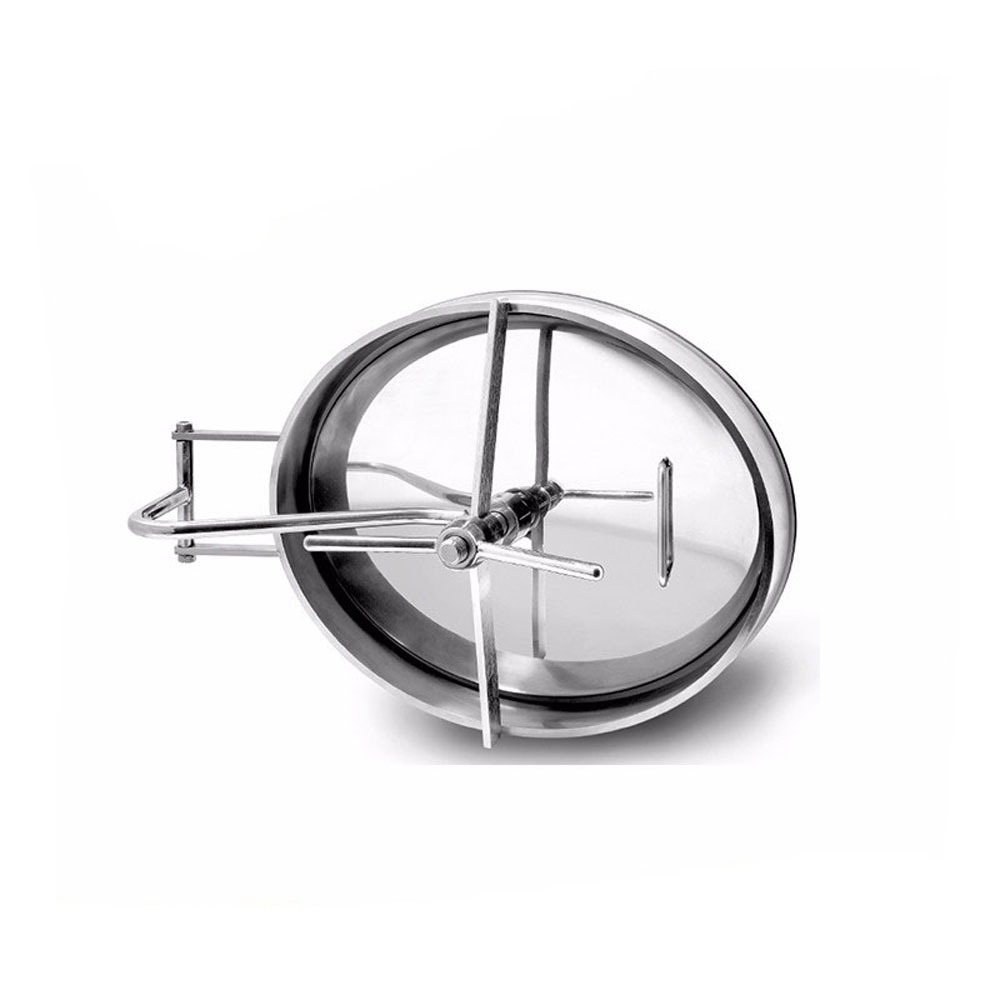

Products Pictures
