4" - 12" SS304 Sanitary SS304 Tri Clamp Carbonation Stones For Beer
Tank Of Brewing Accessories
The component quality of a material is hard and brittle, small
expansion coefficient, thermal shock, not easy to deformation, good
chemical stability.The resistance value of the element is reflected by the resistance
rate, which is determined according to the ministerial standard in
25 microohm.The surface load current density of the element is closely related
to the raw material formula and the pressing density of the black
carbon rod, and can be adjusted as needed.Due to the high temperature and high conductivity of the carbon
rod, the chemical stability is good.Has been widely used in
national defense, machinery, metallurgy, chemical, casting,
non-ferrous metal, light, and other fields, especially black carbon
rod, is also used as ceramic, semiconductor, medical, environmental
protection, laboratory analysis and other fields, become necessary
to use flammable, explosive gas, low cost and safe operation.We can
use arc cutting method to process a variety of metals that cannot
be processed by gas cutting, such as cast iron, stainless steel,
copper, aluminum, etc., with high efficiency and satisfactory
results.

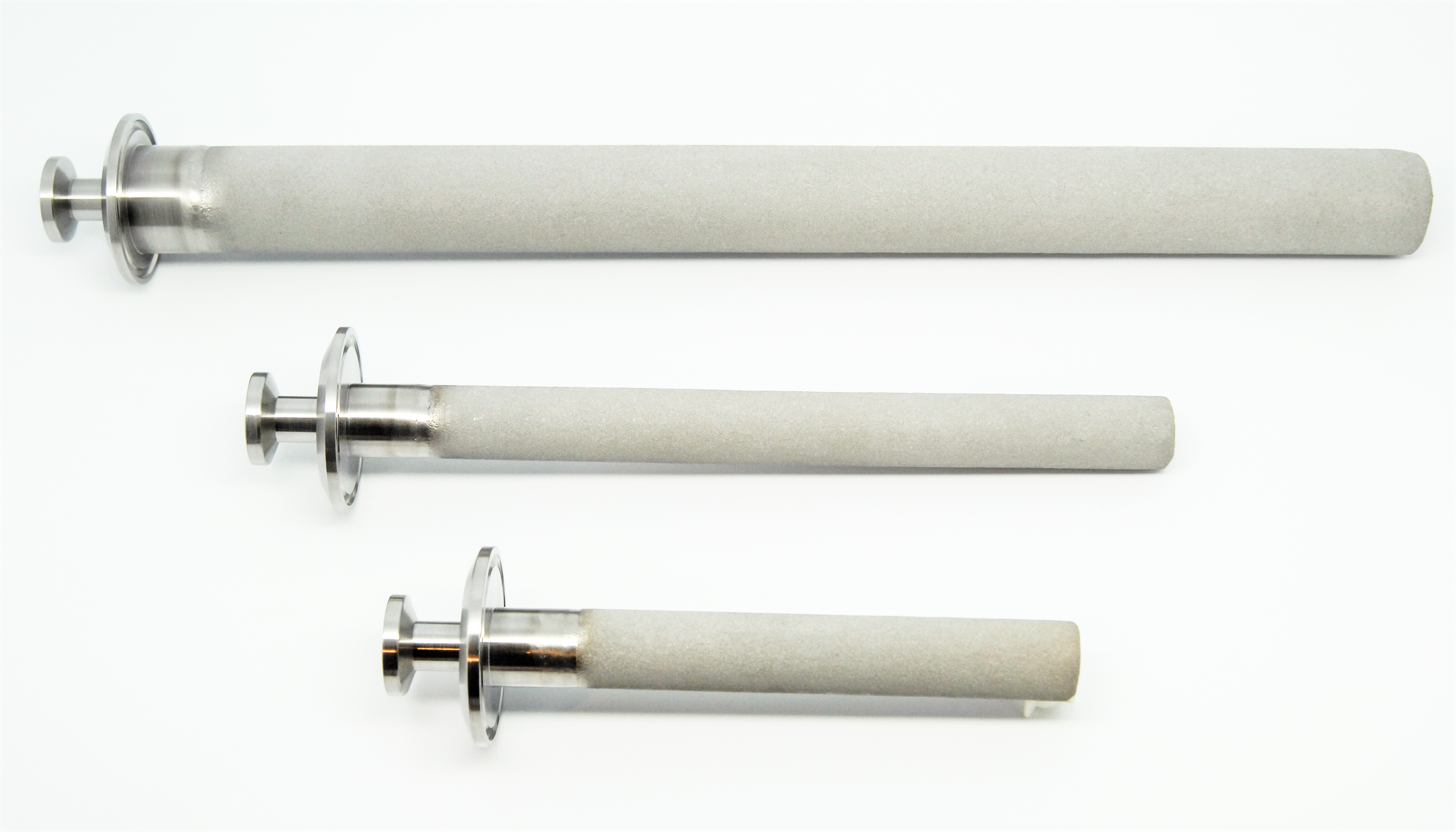

Carbonation Stone | Tri Clamp 1.5 in. x 4 in. w/ 1/4 in. NPT -
SS316
Carbonation Stone | Tri Clamp 1.5 in. x 6 in. w/ 1/4 in. NPT -
SS316
Carbonation Stone | Tri Clamp 1.5 in. x 12in. w/ 1/4 in. NPT -
SS316
Carbonation stones, typically an accessory found on brite beer
fermentation tanks, are designed to be directly mounted via a Tri
Clamp fitting. Each carbonation stone, made from sintered stainless
steel SS316, is a submersible porous body that diffuses CO2 gas
directly into brewing liquid. In an ideal system, the stone is
mounted on the lowest part of the brite tank providing for the
longest distance for CO2 to travel to the head. Some brewers use a
carbonating stone inside a conical fermenter (or Uni Tank), rather
than a brite tank. All Tri Clamp carbonation stones have the
following features:
1½ inch Tri Clamp fitting mounts on tank ferrule
¼ inch FNPT gas connection
¼ inch FNPT fitting
| Product Name: | Stainless Steel NPT Female Thread Carbonation Stone |
| Body Material: | SS304/SS316L |
| TC Size: | 1.5" |
| Connection Size | 1/4" NPT Female Thread |
| Carbonation Stem Length: | 4", 6" or other requirements |
| Ferrule Length: | 46mm |
| Size Option: | Could be customized in any sizes |
| Connection Available: | Weld, Clamp or Male/Female Thread |
| Packing Details: | Each Carbonation Stone is covered bubbles and anti-shake materials
within carton box for delivery. Plywood case is also available
depends on the quantity and the way of transport. |
