3000L Beer Making Machine Of 3 Vessel Brewhouse Fabricated Thickness 2.0mm - 3.00mm SS304

Product Description

Applications area: Beer Bars, Hotels, Restaurants etc.

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

10BBL | 20BBL | 30BBL | 40BBL | 50BBL brewhouse sizes are produced standardly, or even larger for customers. The Brewhouse can be heated with Steam, Gas fired, Electric etc. The system composed of Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four tanks can be combined together to meet different requirement of brew system.

All the tanks certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

We can custom fabricate any tank to meet your brewery’s space and height restrictions.

Standard Features:

3 Vessel Brew House

7BBL/10BBL/15BBL/20BBL/30BBL or customized

• Mash / Lauter Tun with grist hydrator

• Kettle / Whirlpool Tank with heating jacketed

• Grant Tank

• Stainless steel Platform

• Plate Heat Exchanger

• Sanitary Wort Pump x2;

• Wort Oxygenator;

• Semi-Auto Control Panel;

• Interior surface to finish pickled and passivated

• Exterior surface to brushed, #4 finish

Or

Interior surface to polished to RA≤0.22μm

Exterior surface adapts satin polish.

Method of Heating Ways:

• Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;

• Electric: Use electric heaters in jacket to heat the medium in the jacket

• Gas fired: Use gas burner at bottom to heat tank directly;

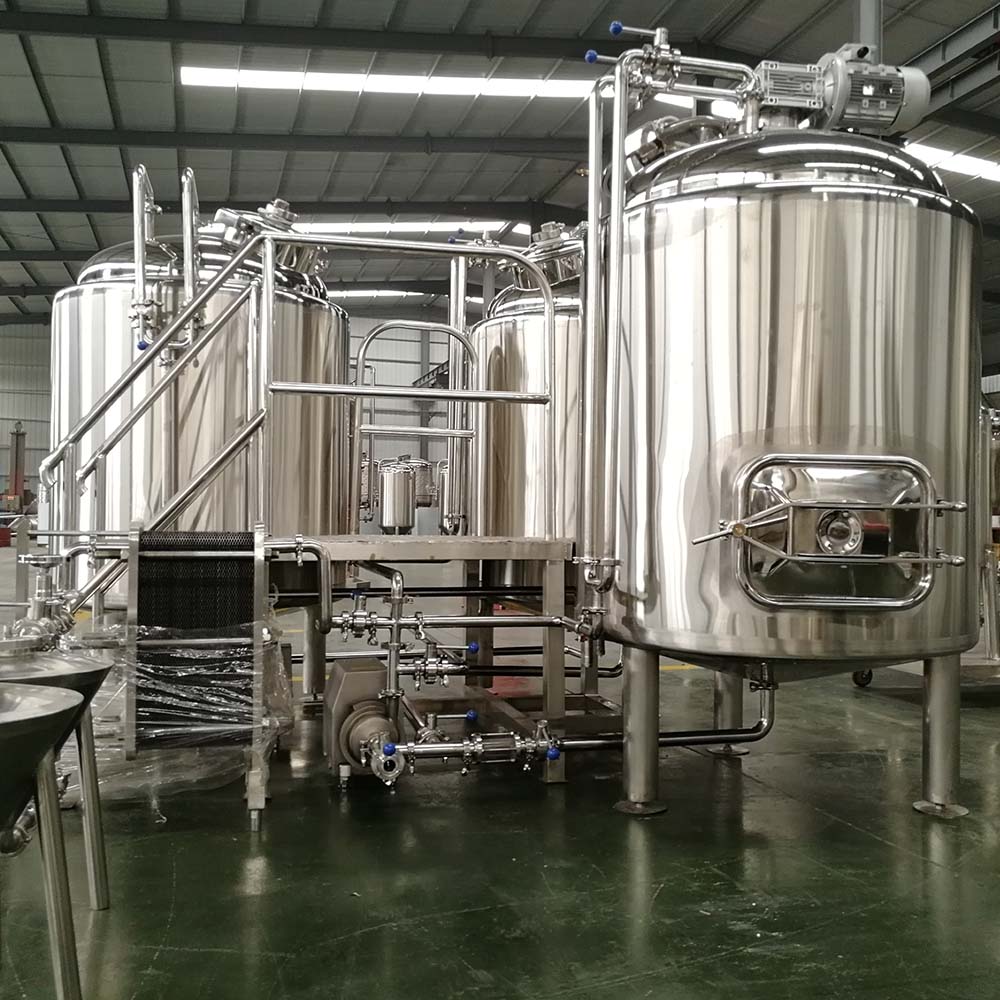

Browhouse Detail Display

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
