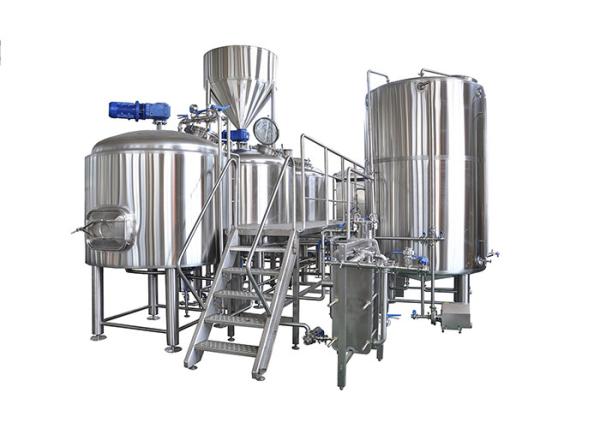

2000L Micro Beer Brewery Equipment 3 Vessel Brewhouse With Steam Heated

Product Description

Brewing is typically divided into 9 steps: milling, malting, mashing, lautering, boiling, fermenting, conditioning, filtering, and filling. The mashing-lautering-boiling-whirlpool take place in the brewhosue, turn the malt into wort.

Standard feature

*Stainless steel material 304/316

*Exterior thickness: 1.5~2.0mm

*Interior thickness:2.5mm~3.0mm

*Flange&dish head

*Temperature sense

*Top manway door (Sight glass manway optional)

*Polyurethane 50~100mm

*Rotary cleaning ball

Mashing

In brewing, mash is the process of combining a mix of milled grain and water, and heating this mixture. Mashing allows the enzymes in the malt to break down the starch in the grains into sugars. Mashing involves pauses at certain temperatures(notably 45-62-73℃ or 113-144-163℉), and take place in a mash tun.

Mash tun:

*Grist hydrator

*Grist case

*Screw conveyer

*Top mounted agitator

Lautering

In brewing, lauter is the spearation from the grains.The fales bottom in the lauter tun has thin slits to hold back the solids and allow liquids to pass through.The mash it self functions as a sand filter to capture mash debris and proteins through recirculation, and sparging also take place in the lauter tank after the first wort run-off, trickling water through the grain to extract sugars.

Lauter tank:

*Milled false bottom

*Side door for spent grains

*Recirculation with sight glass

*Ring of sparging

*Wort collection outlets

*Buffer/grant

*Raker with variable speep drive

Boiling / Whirlpool

After mashing, the beer wort is boiled with hops( and other flavourings if used). The boil on average lasts between 45 and 90 minutes, depending on its intensity, the hop addition schedule and volume of water the brewer expects to evaporate.

Kettle:

*Equip with agitator

*Condenser device

At the end of the boil, solid particles in the hopped wort are separated out in the whirlpool tank. The wort will be cooled through the plate heat exchanger into the fermenter tanks for fermentation.

Whirlpool:

*Single walled tank

*Whirlpool method: tangent whirlpool

These process can be done within one vessel or separate vessels, it's a variety of combinations.

For micro brewery plant, the 3-vessel is a good choice, can reduce the working time for more batches brewery.

HUBEI YIDELI LIGHT INDUSTRY TECHNOLOGY CO., LTD. (shortened as YDL INDUSTRY ) is a professional manufacturer of manufacturer and supplier in brewery, chemical & pharmaceutical, food & beverage equipment industry, certified by ISO, CE, TUV, CSA etc. YDL INDUSTRY has over 10 years experiences in design, manufacture, installation and commissioning and try to be the client’s best partner for planning, design, fabrication, management and successful execution for each unique project, satisfy clients with excellent quality and considerate service.

Our main brewery equipment includes as followings:

• Malt Crushing System: Malt mill, Auger
• Mash System: 2/3/4 Vessel Brewhouse
• Fermentation System: Fermenter
• Storage&Maturation System: Brite Tank
• Water System: Hot Liquor Tank, Cold Liquor Tank, Pump
• Cooling System: Glycol Chiller, Heat Exchanger
• Cleaning System: Portable CIP/Integrated CIP
• Filling&Washing System: Keg Filling machine/Keg Washing Machine
• Others: Kegs, Filtration System etc.

We devote all our energy to meet your needs on any budget or production target. Our equipment is combined with good quality, beautiful appearance and durable using.

• We only use quality SS304/SS304L/SS316/SS316L and fine red copper
• Welders who have been welding for more than ten years only
• Key components only use internationally renowned brands
• Such as SIEMENS, ABB, Alfa Laval, we are using the best control instrument
• No matter which part of the weld is welded, we shall protect it with argon of 9999.9% purity

Today’s crafting beer is a blend of both art and process and we love the artistry that today’s brewers are creating. However, we also believe that the application of science, engineering, technology, and automation can give brewers better tools to create even better works of art more efficiently, more economically, more consistently and with greater respect for our environment through unmatched sustainability.

YDL INDUSTRY is dedicated to being the best manufacturer and supplier of brewery equipment, technology, and services to the craft brewing market. Our mission is helping craft breweries “CRAFTING BETTER BEER LIKE GENIUS”
