7BBL 2 Vessel Brewhouse Steam Heating For Beer Brewing Process
Quick Details
1. Products: 7BBL brewhouse
2. Capacity: 7BBL or 1000L
3. Heat Method: Steam/Electric/Fired direct heating
4. Material: sanitary stainless steel SUS304 SS316L
5. Function: beer brew
6. Over 10years strong factory
7. Customized service
Feature
| Micro Pub Brewery beer making machine 7bbl brewhouse system
industrial turnkey beer brewing equipment with 820l beer per batch |
| Brewing System | Components | Specification |
| Grain Milling System | Rolling Miller
Flexible Auger
Silo | Double roller
Speed differential
Stainless steel screw
PVC pipe
SUS304 |
| Heating way | 3 kinds heating way | electric heating, direct fire gas heating ,steam jacket heating |
| Brewhouse System | Mash tun | Steam jacket on bottom and side
Agitator inside
Wort hydrator mounted top of mash tun
|
| Lauter tun | Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring(optional)
Anti-rinser(optional) |
| Kettle/Whirlpool Tun | Steam Jacket on bottom and side
Steam vent with condensate ring for kettle stack |
| Heat exchanger | SUS304 plate |
| Fermentation System | Fermentation Tank | Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level |
| Yeast Adding Tank | SUS304 Stainless Steel |
| Glycol Chilling System | Glycol Water tank | Insulated conical top and sloped bottom |
| Cold Water Tank | Dimple plate on side wall |
| Chiller | |
| CIP Cleaning System | Caustic Tank | electric heating element inside
SUS304 full welded |
| Sterilization Tank |
| Transfer&Control |
| Control System | Brewing and fermetation process Controlling | Manual/Semi-automatic/Automatic
PLC control with touch screen for special |
| NFE 7BBL microbrewery equipment | 10BBL Brewhouse – steam jacket heating/electrical heating/direct
fired heating Mash vessel – grist hydrator, agitator, frequency drive
Lauter tun - false bottom, rake system, sparging
Boiling Kettle/Whirlpool tank- Tangential whirlpool entry, with
heating system
Pumps with ABB motor
Stainless steel 304 working platform
Plate heat exchanger – 304 or 316 plates
7BBL/14BBL fermentation tanks/bright beer tanks
14BBL HLT
Glycol cooling system(glycol chiller, glycol tank, glycol pump)
CIP system
Grain mill system(grain miller, flex auger, grist case)
PLC Siemens touch screen Control panel with UL/CSA rated
Quick-wear parts Complete engineering support and onsite installation! |
Application
Brewhouse 2bbl 3bbl 5bbl 7bbl 10bbl beer brewing equipment produced
by us. the brewhouse equipment for the production of live and
filtered beer, brew master make their beer attractive to comsumers
by unique brewing process and distinctive beer taster. If desired,
they can be placed directly in places of consumption of beer:
restaurants, pub, bars, hotels, tourist and shopping centers.
Description
To make the best beer possible, the brew house is the key. On the
basis of absorbing European advanced and experienced beer machinery
technology, Our Brew house can fulfill various brewing
technologies, variable tastes or specific capacities.
10BBL | 20BBL | 30BBL | 40BBL | 50BBL brewhouse sizes are produced
standardly, or even larger for customers. The Brew house can be
heated with Steam, Gas fired, Electric etc. The system composed of
Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four
tanks can be combined together to meet different requirement of
brew system.
All the tanks certified stainless steel material for all tanks,
with 100% TIG welded joints and seams with sanitary interior
polish. All tanks use Tri-clamp connections, are designed for up to
14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to
meet your brewery’s space and height restrictions.

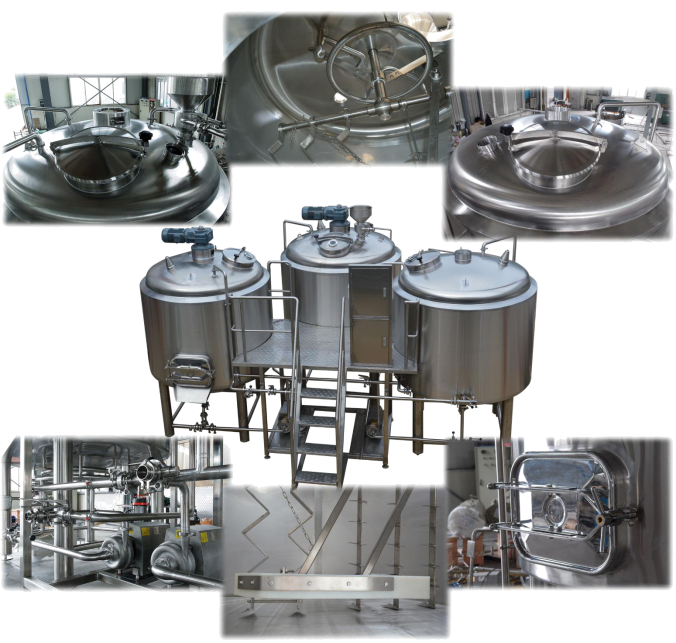

Sample and details show
